Booster Air Compressor

Model: WAE-13/30-40
Capacity: 6.0-40.0 m3/min
Working pressure: 30-40 bar
Motor power: 135kW
Description

WAE range booster compressor is combined with screw air compressor and booster.
Screw air compressor produce comrpessed air in regular pressure , eg: 8 bar ; then booster increased the pressure to the pressure requested by end using , eg: 40 bar.

What are the benefits of WBS range screw air compressor ?

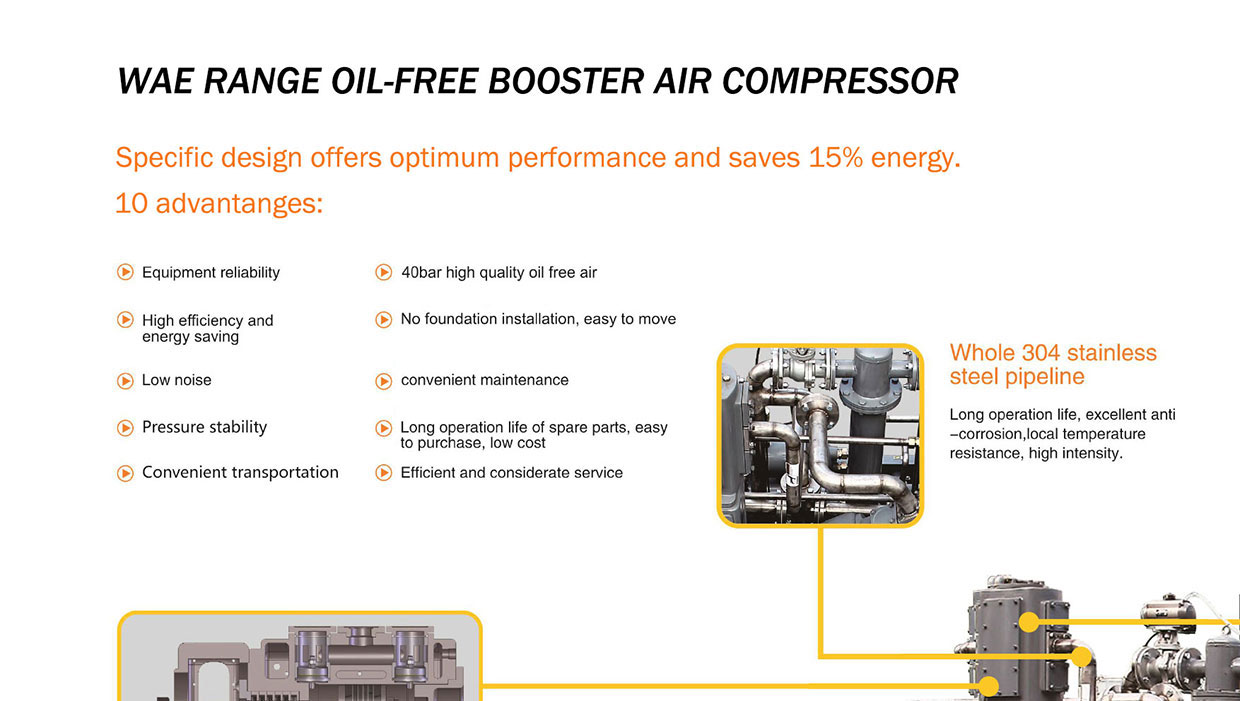

Specific design offers optimum performance and saves 15% energy 10 advantanges:

  • ● Equipment reliability
  • ● High efficiency andenergy saving
  • ● Low noise
  • ● Pressure stability
  • ● Convenient transportation
  • ● 40bar high quality oil free air
  • ● No foundation installation, easy to move
  • ● Convenient maintenance
  • ● Long operation life of spare parts, easyto purchase,low cost
  • ● Efficient and considerate service
Details

Electrical Motor

  • ● IP54,insulation Class F, lE2
  • ● Can continuously work in harsh envionments.

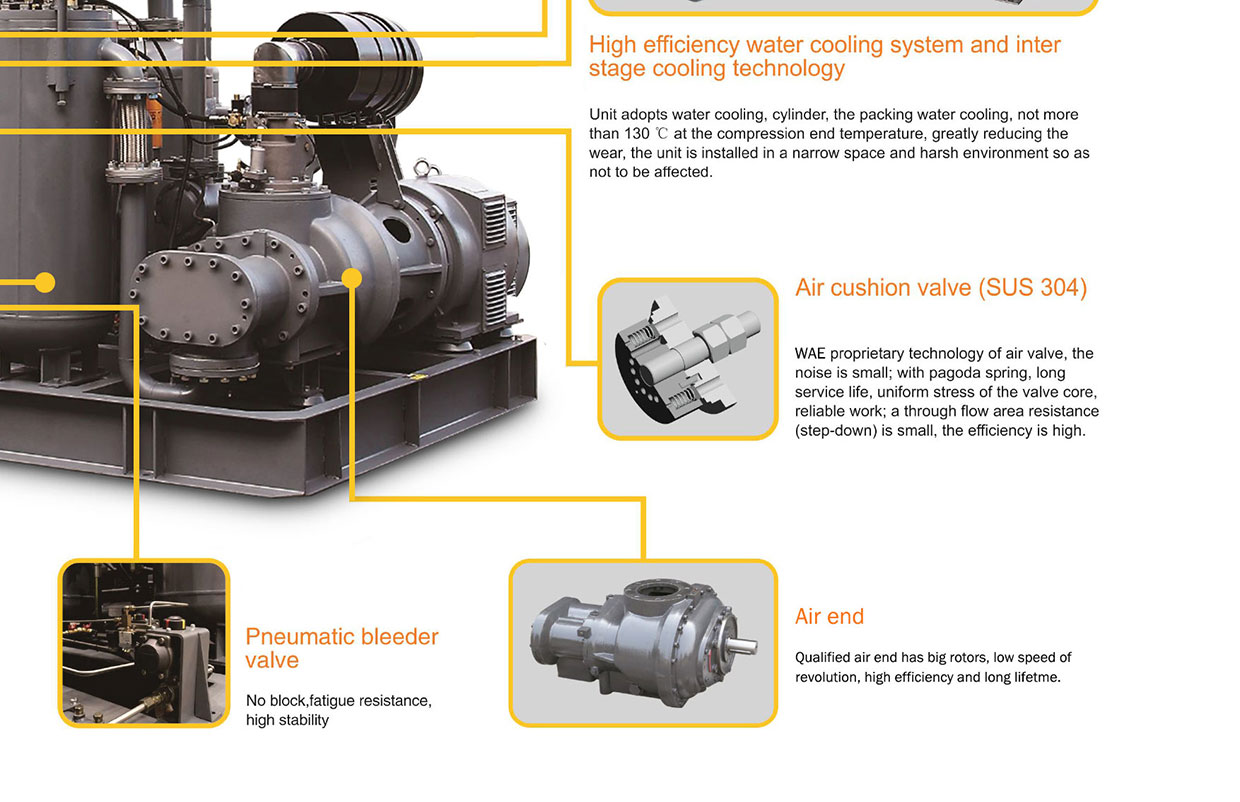

High Efficiency Airend

  • ● High output airend with advanced profile rotors.
  • ● Equiped with premium quality bearing ( such as SKF).

Oil Filter

  • ● High filtering efficiency.
  • ● Oil circuit protection.

Oil Air Separator Tank

  • ● Low outlet temperature, ensuring long oil lifetime.
  • ● Large surface to ensure low operating temperature.

Heavy duty Air Intake Filter

  • ● Protects the compressor components by removing thedirty particles.
  • ● Guarantees longer lifetime of compressor components.

Cooling System

  • ● Ensuring Low Pressure Drop
  • ● Efficient separation, low oil content ( less than 3ppm ).
Specifications
Model Working pressure  FAD Power Voltage Starter Pipe Diameter Water Consumption Weight  Dimension (mm)
No. bar m3/min kw V/Hz Mode Air outlet Water inlet/outlet t/h Kg L W H
WAE-6.0 30-40 6.0  67 380/50
or Customized
Star-Delta or
Inverter
DN40 Rc1-1/2"  20 3000 2760 1500 1500
WAE-8.0 30-40 6.0  85 380/50
or Customized
Star-Delta or
Inverter
DN40 Rc1-1/2"  20 3500 2760 1500 1500
WAE-11.0 30-40 11.0  120 380/50
or Customized
Star-Delta or
Inverter
DN40 Rc1-1/2"  20 4400 3620 1800 2000
WAE-13.0 30-40 13.0  135 380/50
or Customized
Star-Delta or
Inverter
DN40 Rc1-1/2"  30 4650 3620 1800 2000
WAE-14.0 30-40 14.0  145 380/50
or Customized
Star-Delta or
Inverter
DN40 Rc1-1/2"  30 4850 3620 2100 2000
WAE-16.0 30-40 16.0  185 380/50
or Customized
Star-Delta or
Inverter
DN50 Rc2"  30 5000 3620 2100 2000
WAE-20.0 30-40 20.0  222 380/50
or Customized
Star-Delta or
Inverter
DN50 Rc2"  50 7000 4165 2150 2100
WAE-25.0 30-40 25.0  250 380/50
or Customized
Star-Delta or
Inverter
DN65 Rc2-1/2"  50 8000 4590 2150 2100
WAE-30.0 30-40 30.0  310 380/50
or Customized
Star-Delta or
Inverter
DN65 Rc2-1/2"  60 10000 4590 2150 2100
WAE-36.0 30-40 36.0  360 380/50
or Customized
Star-Delta or
Inverter
DN65 DN100 80 12000 6000 2300 2100
WAE-40.0 30-40 40.0  410 380/50
or Customized
Star-Delta or
Inverter
DN65 DN100 90 13000 6500 2500 2300
