22-132 kW 2-Stage Compression Screw Air Compressor

Model: WBV-22IIE
Capacity: 3.0-4.0 m3/min
Working pressure: 8-10 bar
Motor power: 22kW
Contact us Inquiry Now
Description Specifications Related Products
Get Quote
Description

The WBVIIH Range is equiped with horizontal 2-stage compression air end and IP23 electrical motor. Comparing to standard 2-stage compression , this range is more economical and more output. Only variable speed is available for this model.

Details

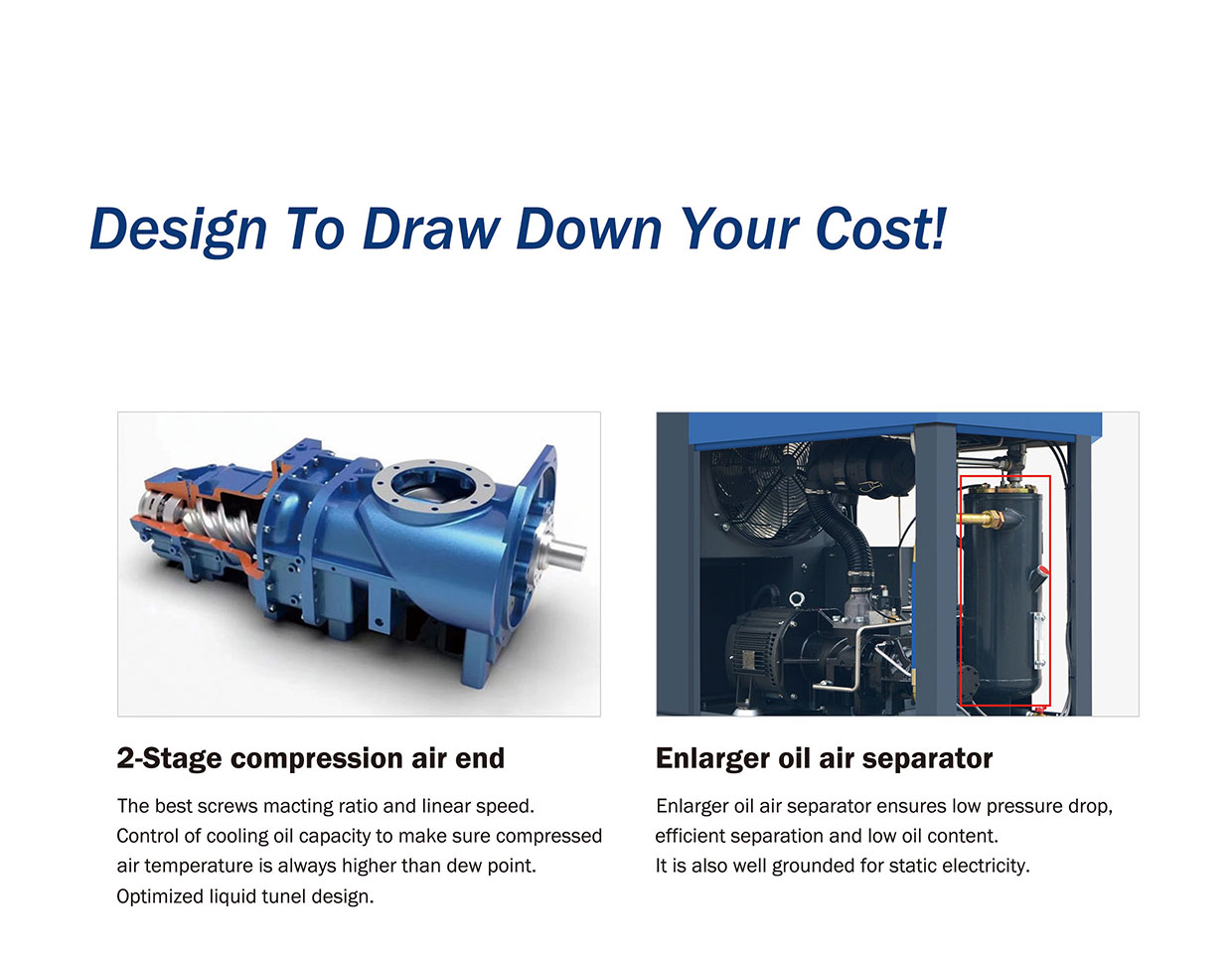

2-Stage compression air end

  • ● The best screws macting ratio and linear speed.Control of cooling oil capacity to make sure compressedair temperature is always higher than dew point.Optimized liquid tunel design.

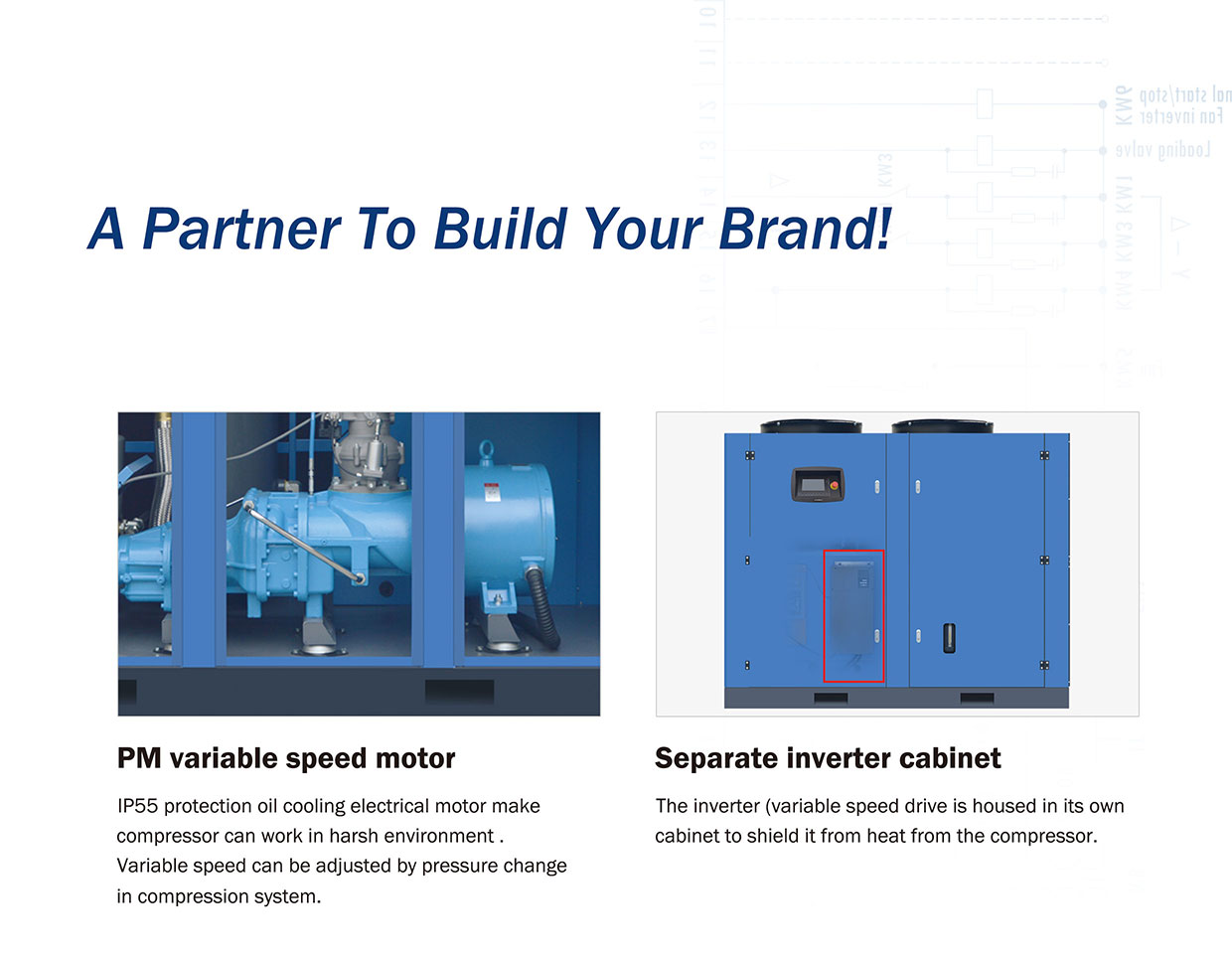

PM variable speed motor

  • ● IP55 protection oil cooling electrical motor makecompressor can work in harsh environment .Variable speed can be adjusted by pressure changein compression system.

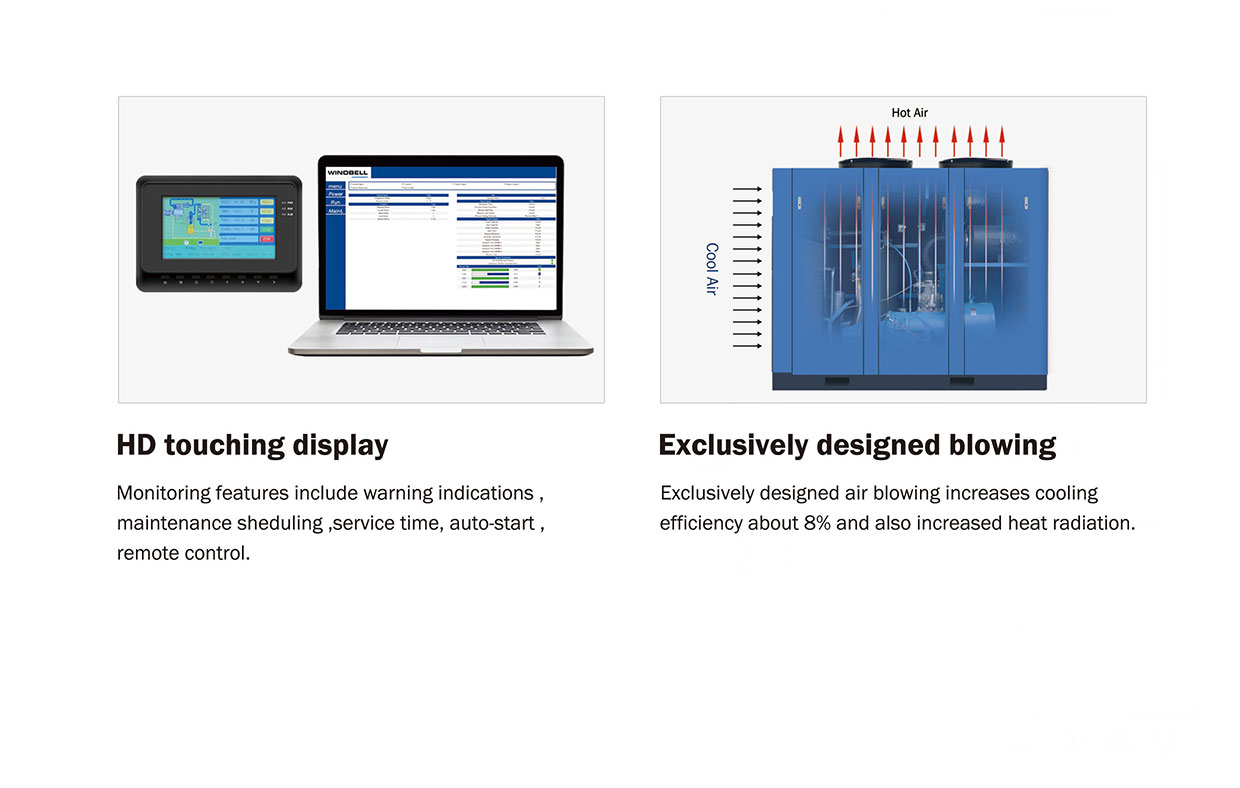

Exclusively designed blowing

  • ● Exclusively designed air blowing increases cooling efficiency about 8% and also increased heat radiation.

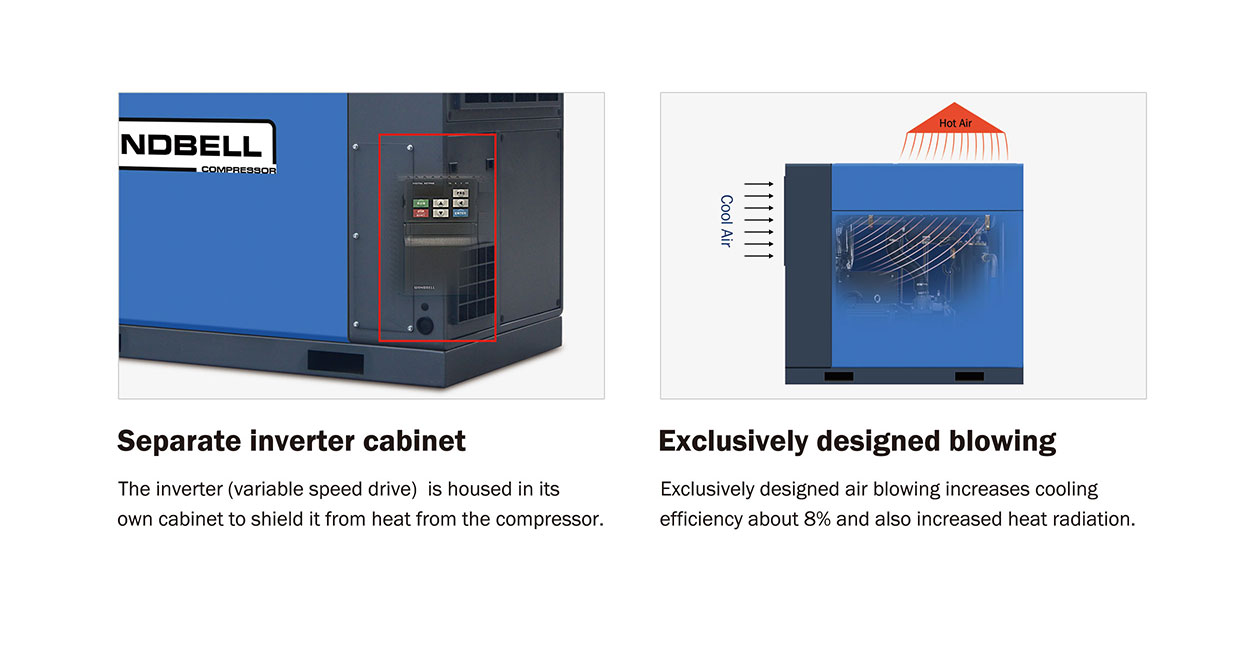

Separate inverter cabinet

  • ● The inverter (variable speed drive) is housed in itsown cabinet to shield it from heat from the compressor.

HD touching display

  • ● Monitoring features include warning indicationsmaintenance sheduling ,service time, auto-startremote control.

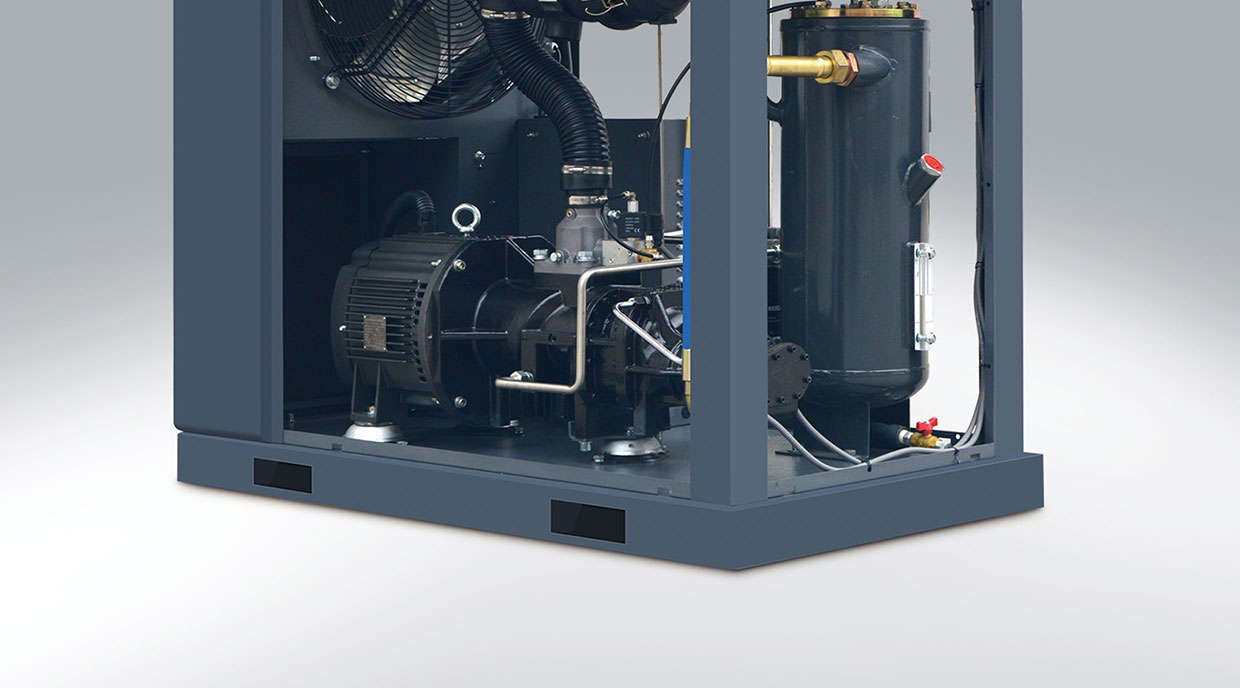

Enlarger oil air separator

  • ● Enlarger oil air separator ensures low pressure drop, efficient separation and low oil content.
    It is also well grounded for static electricity.

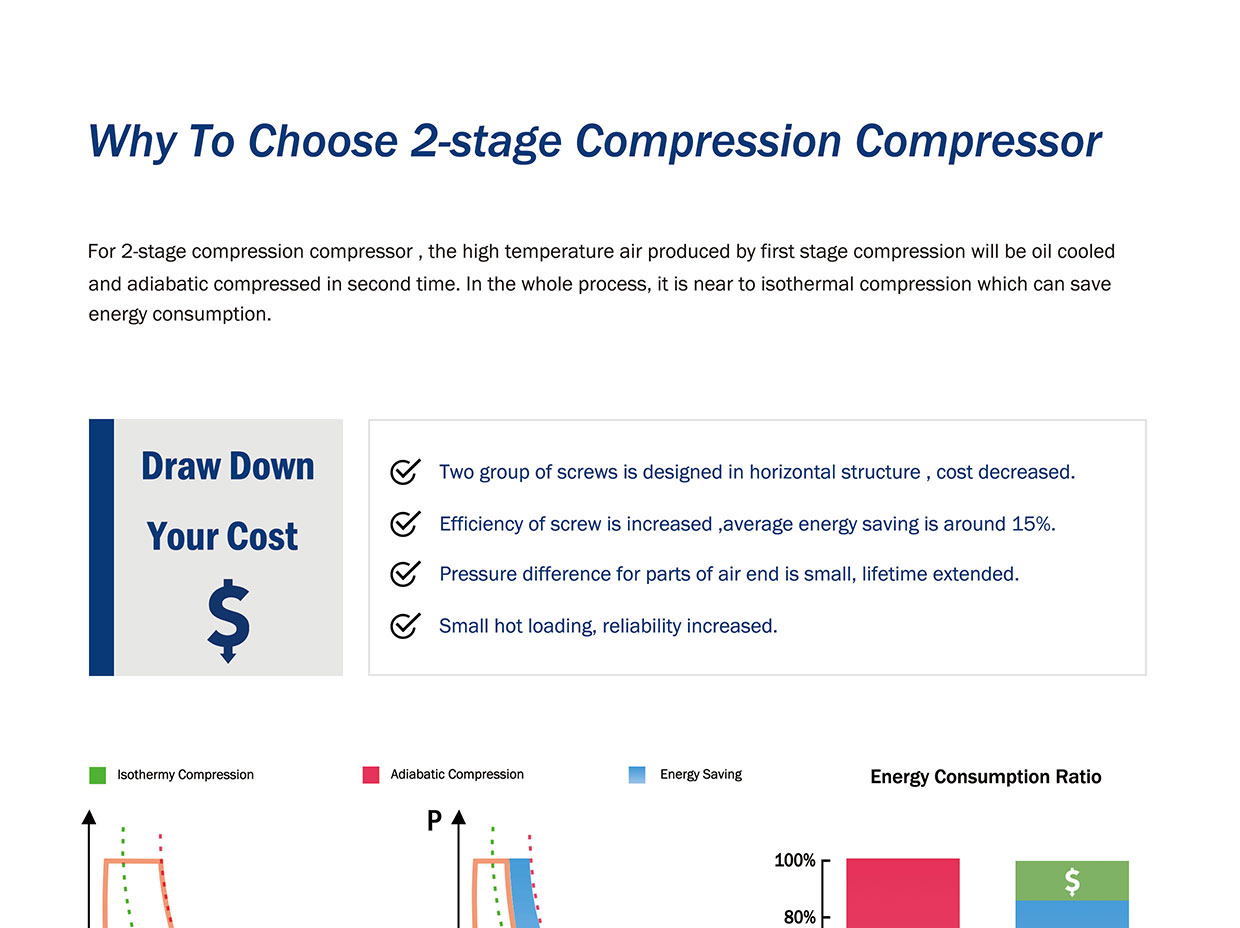

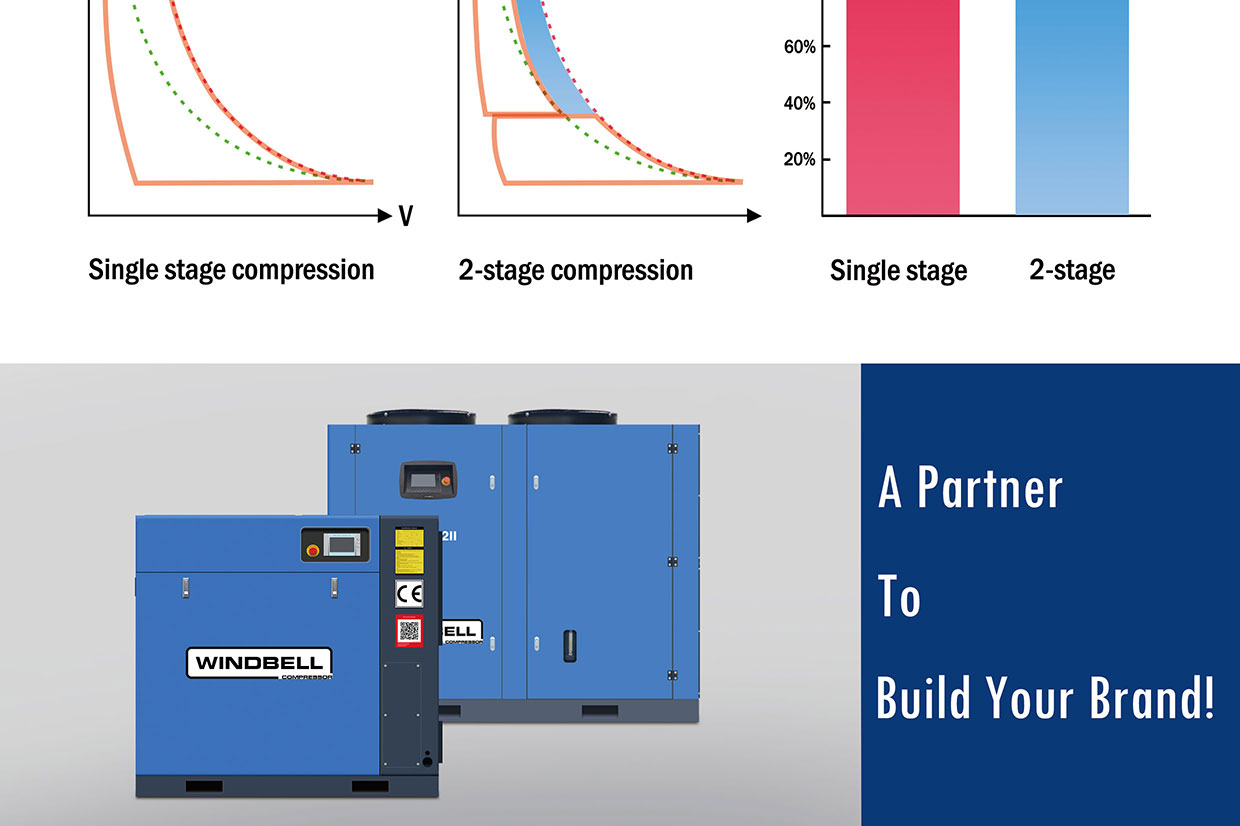

Why To Choose 2-stage Compression Compressor

For 2-stage compression compressor , the high temperature air produced by first stage compression wilbe oil cooledand adiabatic compressed in second time. in the whole process, it is near to isothermal compression which can saveenergy consumption.

Specifications
Model Working pressure  Capacity FAD Motor Power Voltage Starter Oulet  Weight  Dimension (mm)
No. bar psi cfm m3/min hp kw V/Hz Mode Diameter Kg L W H
WBS22II 7 100 155  4.5  30 22 380/50
or Customized		 Inverter G1 550 1370 780 1250
8 116 140  4.0
10 145 105  3.0
12 174 80  2.2
WBS37 7 100 275  7.8  50 37 380/50
or Customized		 Inverter G2 900 1800 1150 1500
8 116 255  7.3
10 145 225  6.3
12 174 195  5.5
WBS45 7 100 360  10.2  60 45 380/50
or Customized		 Inverter G2 1200 1950 1200 1600
8 116 355  10.1
10 145 275  7.8
12 174 230  6.5

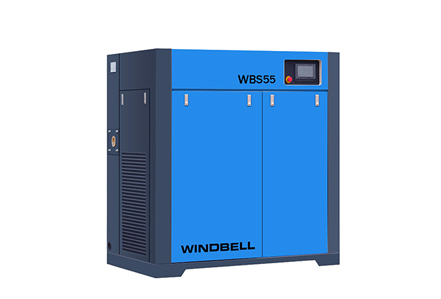

WBS55 7 100 475  13.4  75 55 380/50
or Customized		 Inverter G2 1300 1950 1200 1600
8 116 460  13.0
10 145 360  10.2
12 174 315  9.0
WBS75 7 100 550  15.6  100 75 380/50
or Customized		 Inverter G2 1500 1950 1200 1600
8 116 530  15.1
10 145 450  12.8
12 174 390  11.0
WBS90 7 100 705  20.0  120 90 380/50
or Customized		 Inverter DN80 2800 2650 1650 1670
8 116 690  19.5
10 145 565  16.0
12 174 495  14.0
WBS110 7 100 850  24.0  150 110 380/50
or Customized		 Inverter DN80 3000 2650 1650 1670
8 116 830  23.5
10 145 690  19.5
12 174 565  16.0
WBS132 7 100 980  27.8  180 132 380/50
or Customized		 Inverter DN80 3100 2650 1650 1670
8 116 955  27.0
10 145 830  23.5
12 174 690  19.5
