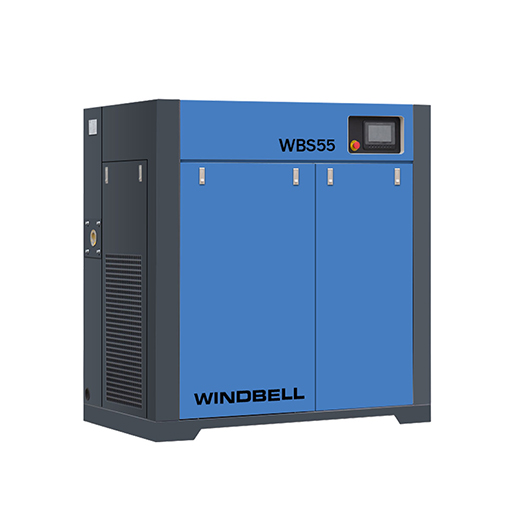

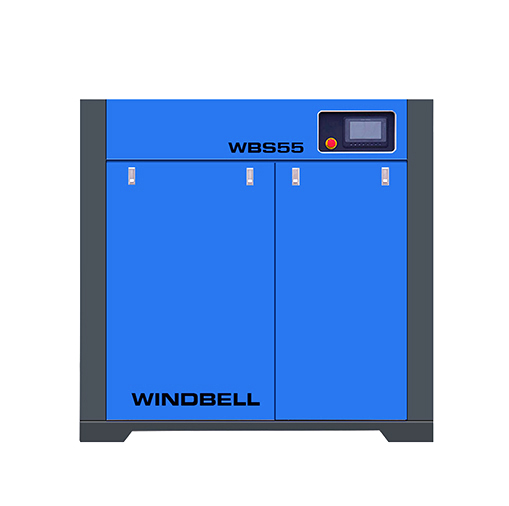

45-75kW Screw Air Compressor

Model: WBS(V)55
Capacity: 8.0-10.5 m3/min
Working pressure: 7-12 bar
Motor power: 55kW
Description

WBS Range ( 45-75kw) compressor is our most popular model. It is direct drive , and equiped with turbo blower, IP55 electrical motor and high efficiency screw air end.

What are the benefits of WBS range screw air compressor ?

  • ● Continuous operation
  • ● Compact and silent design
  • ● Clourful touchable screen controller
  • ● Easy to maintain
  • ● Powerful performance
  • ● Energy-efficient
Details

Electrical Motor

  • ● IP54,insulation Class F, lE2
  • ● Can continuously work in harsh envionments.

High Efficiency Airend

  • ● High output airend with advanced profile rotors.
  • ● Equiped with premium quality bearing ( such as SKF).

Oil Filter

  • ● High filtering efficiency.
  • ● Oil circuit protection.

Oil Air Separator Tank

  • ● Low outlet temperature, ensuring long oil lifetime.
  • ● Large surface to ensure low operating temperature.

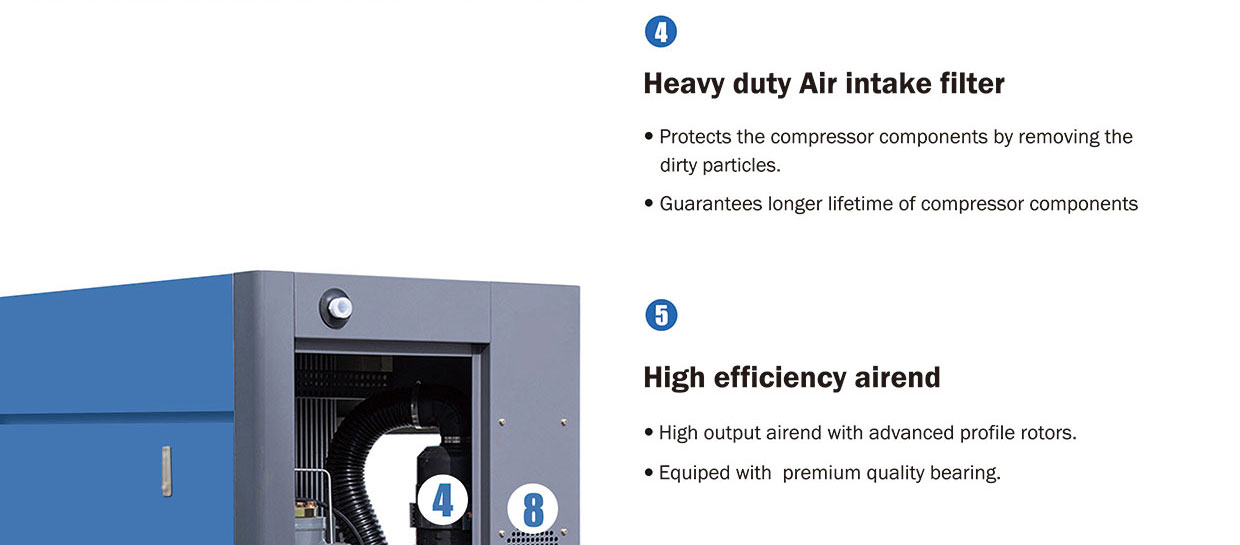

Heavy duty Air Intake Filter

  • ● Protects the compressor components by removing thedirty particles.
  • ● Guarantees longer lifetime of compressor components.

Cooling System

  • ● Ensuring Low Pressure Drop
  • ● Efficient separation, low oil content ( less than 3ppm ).

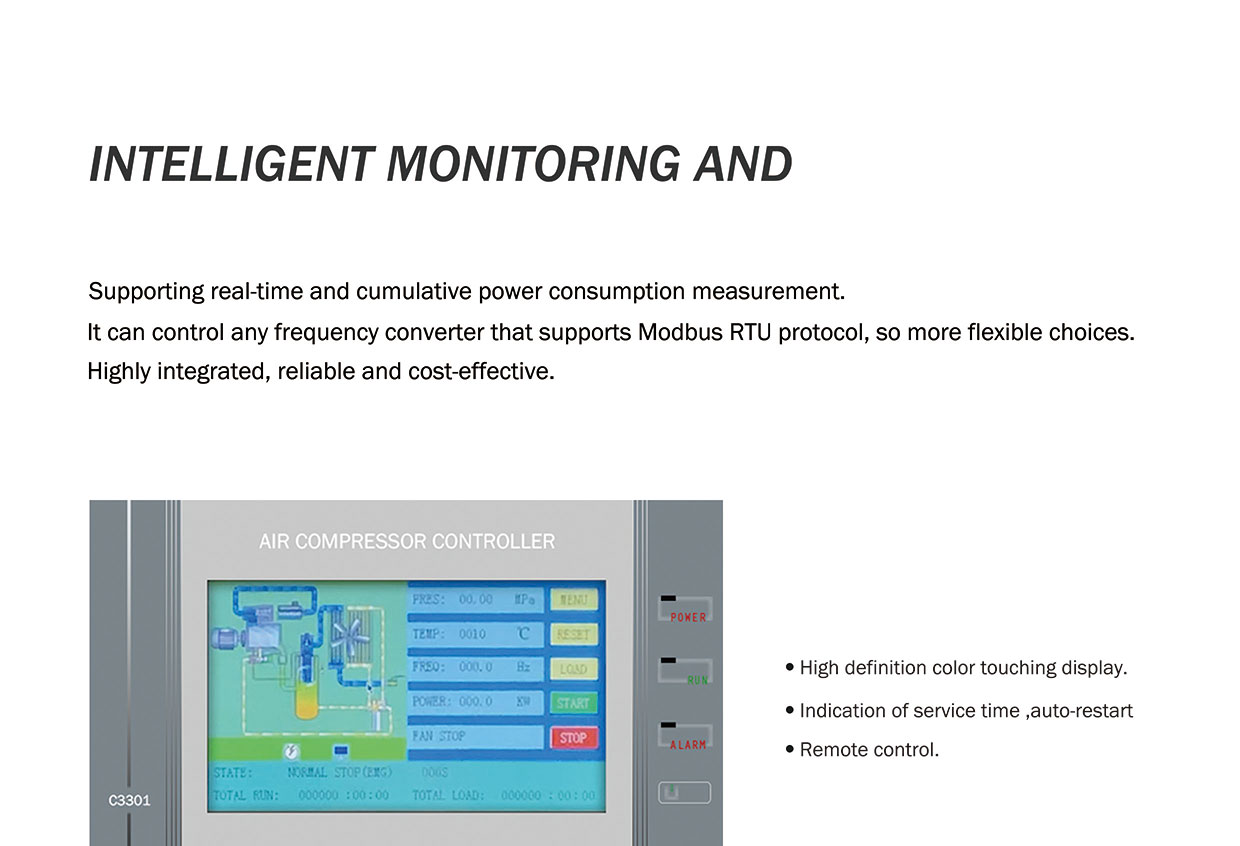

INTELLIGENT MONITORING AND

Supporting real-time and cumulative power consumption measurement.
It can control any frequency converter that supports Modbus RTU protocol, so more flexible choices.
Highly integrated, reliable and cost-effective.

  • ● High definition color touching display.
  • ● Indication of service time ,auto-restart.
  • ● Remote control.

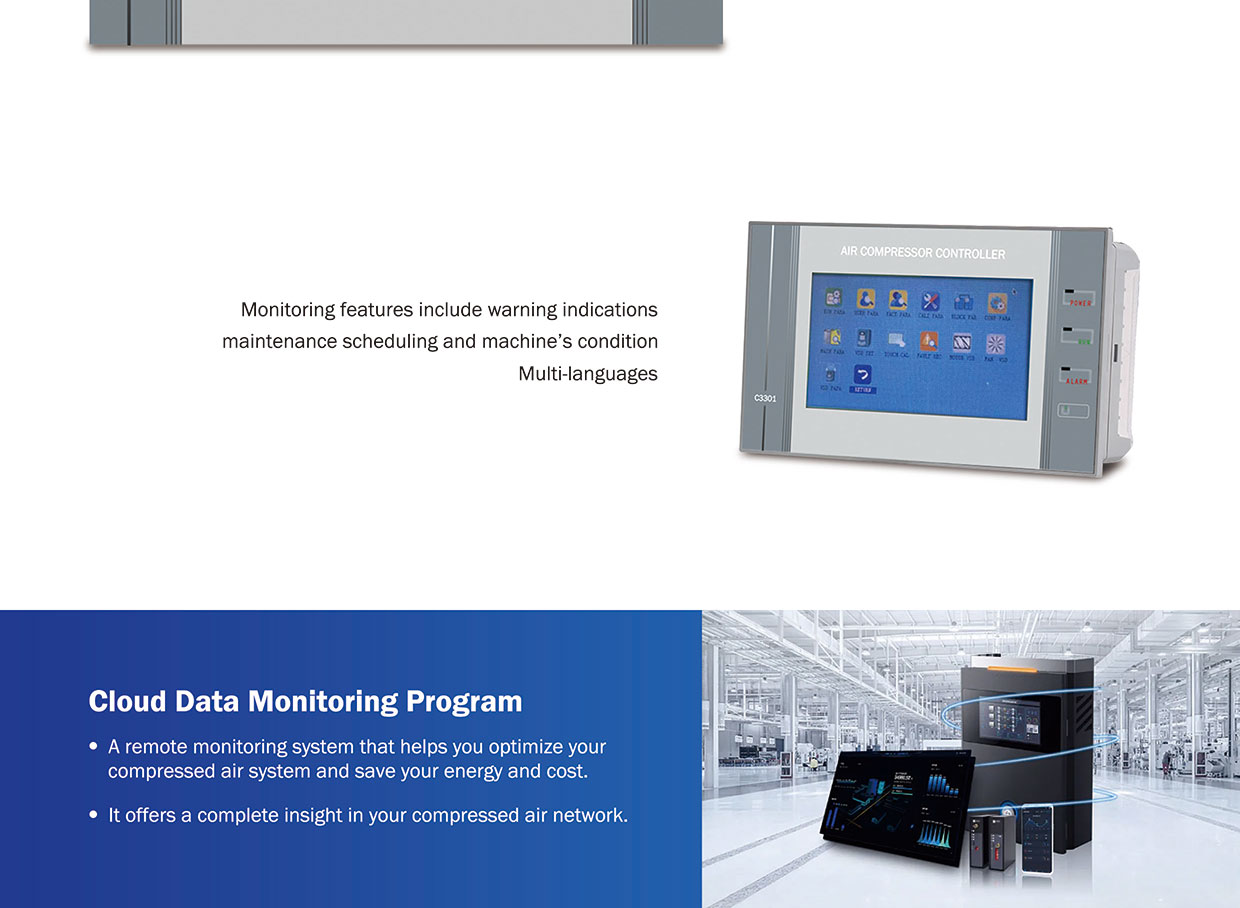

  • Monitoring features include warning indicationsmaintenance scheduling and machine's condition Multi-anguages

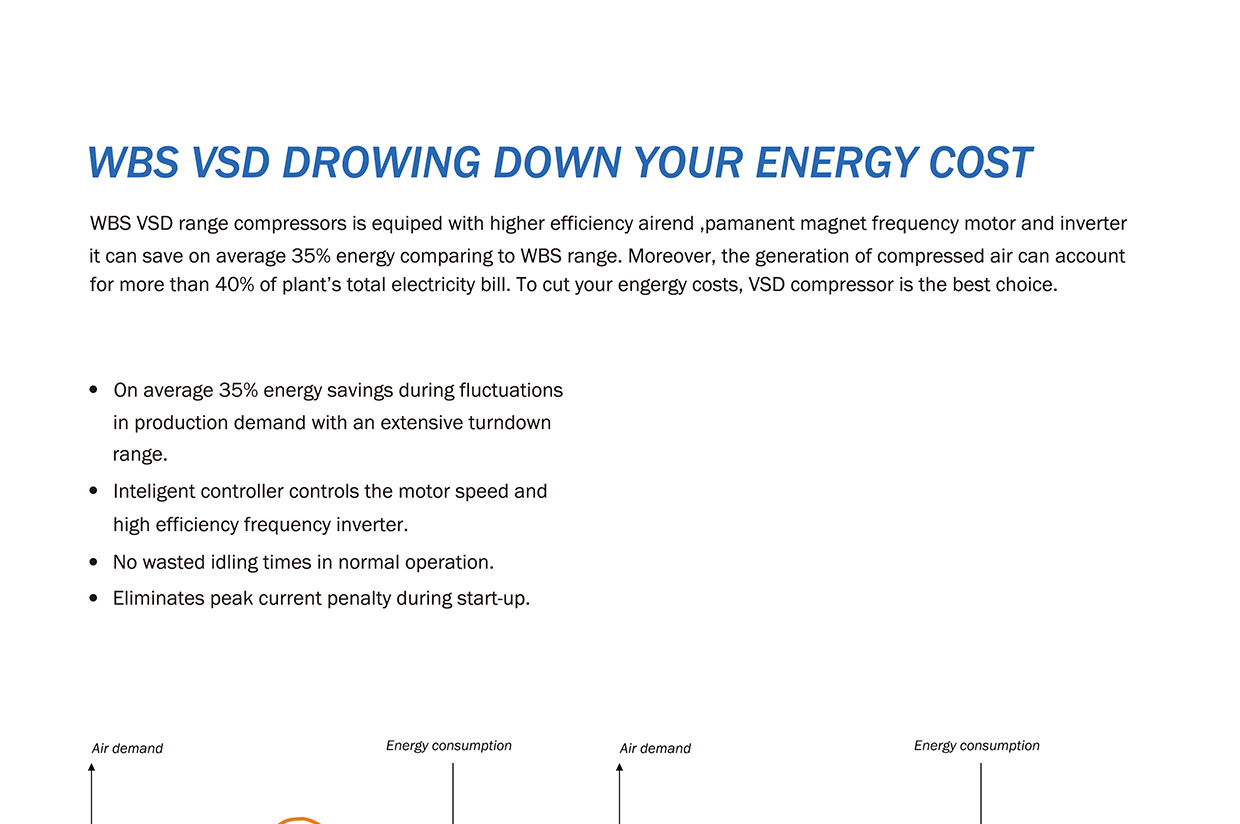

WBS VSD DROWING DOWN YOUR ENERGY COST

WBS VSD range compressors is equiped with higher eficiency airend ,pamanent magnet frequency motor and invertert can save on average 35% energy comparing to WBS range. Moreover, the generation of compressed air can accountfor more than 40% of plant's total electricity bil., To cut vour engergy costs, VSD compressor is the best choice.

  • ● On average 35% energy savings during fluctuationsin production demand with an extensive turndownrange.
  • ● Inteligent controller controls the motor speed andhigh efficiency frequency inverter.
  • ● No wasted idling times in normal operation.
  • ● Eliminates peak current penalty during start-up.

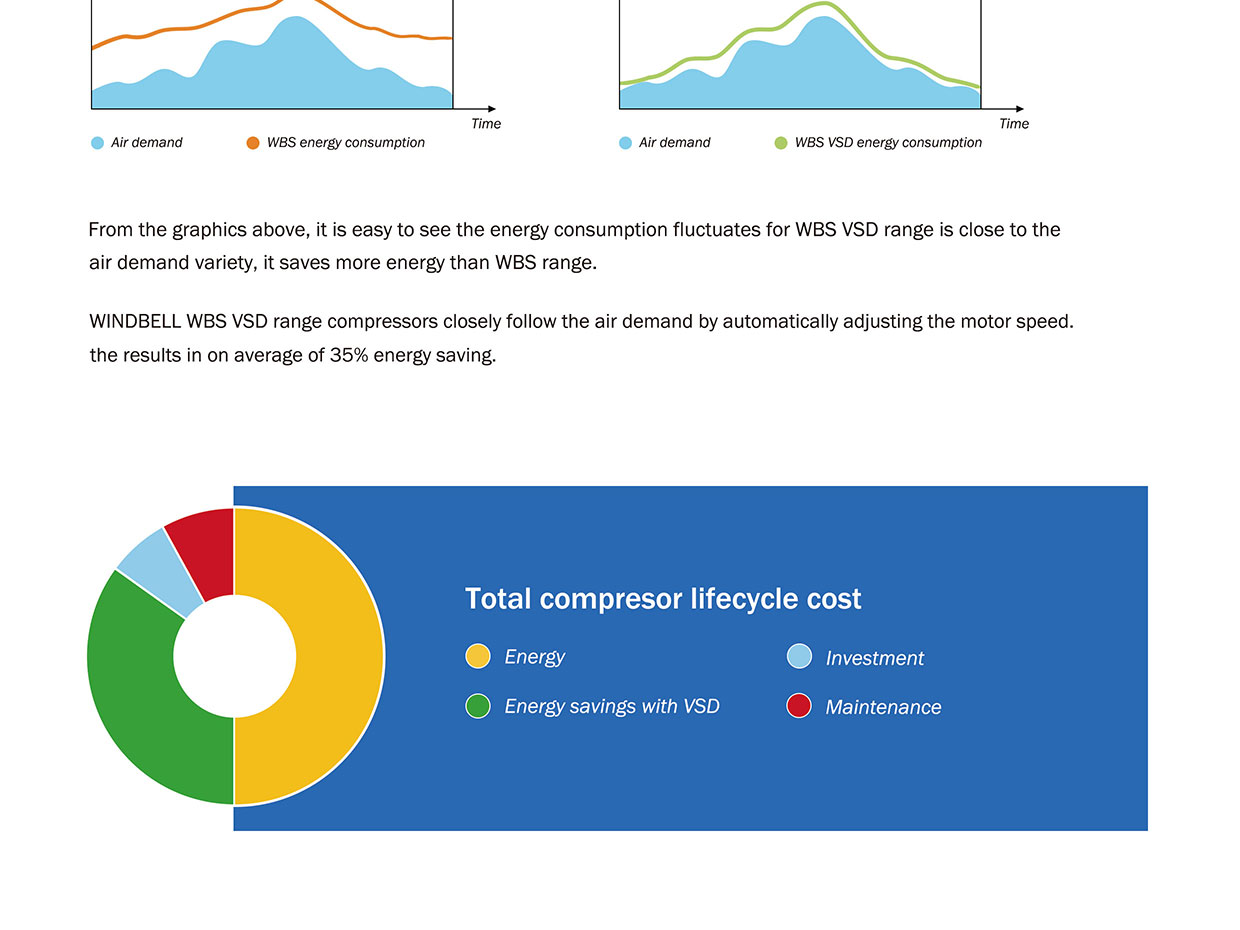

From the graphics above, it is easy to see the energy consumption fluctuates for WBS VSD range is close to theair demand variety, it saves more energy than WBS range.
WINDBELL WBS VSD range compressors closely follow the ar demand by automatically adjusting the motor speedthe results in on average of 35% energy saving.

Specifications

Model No.

Working pressure

bar

Capacity(FAD)

m3/min

Power

kw

Driving model

Cooling method

Noise level

dB

Outlet diameter

Weight

kg

Dimension

mm

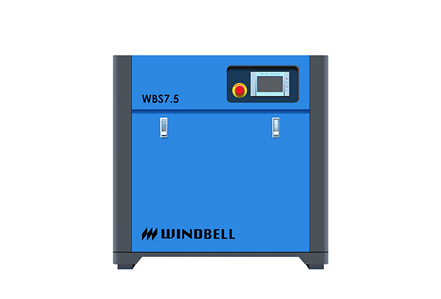

WBS7.5

7

1.2

7.5

Direct

Air cooling(Standard)

63

G3/4"

400

890*560*840

8

1.1

10

1.0

12

0.8

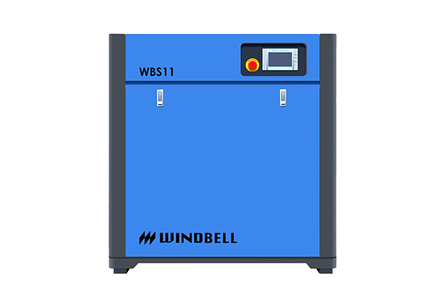

WBS11

7

1.8

11

Direct

Air cooling(Standard)

64

G3/4"

460

1050*690*1080

8

1.6

10

1.5

12

1.3

WBS15

7

2.6

15

Direct

Air cooling(Standard)

65

G3/4"

500

1050*690*1080

8

2.4

10

2.1

12

1.8

WBS22

7

 3.7

22

Direct driven

Air cooling

65

G1"

 550

1350*780*1250

8

 3.5

10

 3.1

12

 2.7

WBS30

 7

5.3

30

Direct driven

Air cooling

67

G1-1/2"

940

1420*900*1425

 8

5.1

10

4.6

12

3.9

WBS37

7

6.5

37

Direct driven

Air cooling

67

G1-1/2"

1000

1420*900*1425

8

6.2

10

5.6

12

4.9

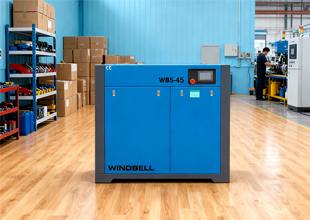

WBS45

7

8.1

45

Direct driven

Air cooling

 70

G1-1/2"

 1050

 1750*1100*1700

8

7.5

10

7.0

12

6.0

WBS55

7

10.5

55

Direct driven

Air cooling

73

G2"

1500

1750*1100*1700

8

10

9

9.0

12

8.0

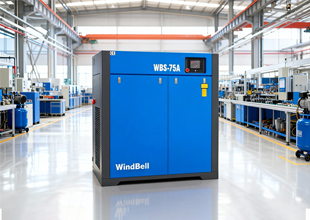

WBS75

7

14.3

75

Direct driven

Air cooling

75

G2"

1700

1750*1100*1700

8

13.0

10

11.8

12

10.5
