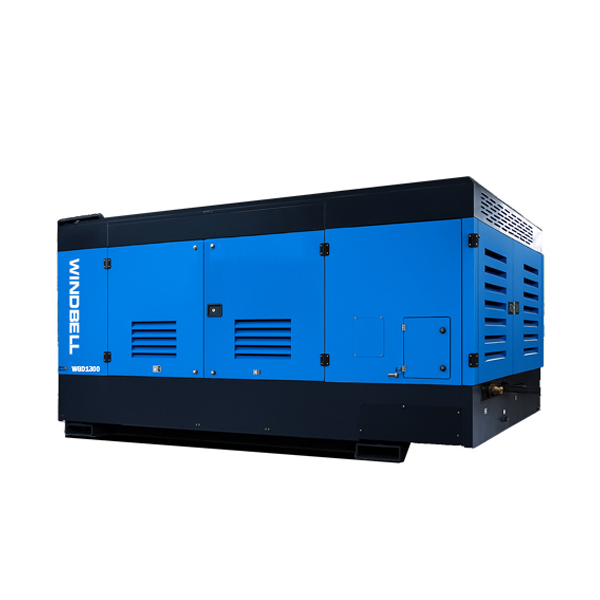

1620 cfm Diesel Air Compressor

Model: WGD1620
Capacity: 1200-1620CFM
Working pressure: 15-40 bar
Motor power: 588kW
Contact us Inquiry Now
Description Specifications Related Products
Get Quote
Description

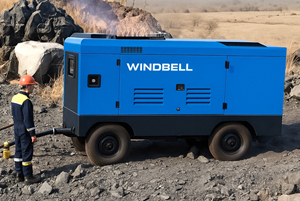

High-pressure drilling rig air compressors are equipment specifically designed for heavy-duty working conditions such as mining drilling and blasting, and rock drilling. Their core parameters are air pressure (typically ≥1.4MPa) and displacement. They must be used in conjunction with down-the-hole drills or rock drills.

High-pressure air compressors are mainly used in oil and gas extraction, mining drilling and blasting, pipeline construction, and in the steel, power, and metallurgical industries.

Details
  • Equipped with a high-power engine and heavy-duty system design, it boasts excellent starting performance and outstanding fuel economy, adapting to various harsh operating conditions.

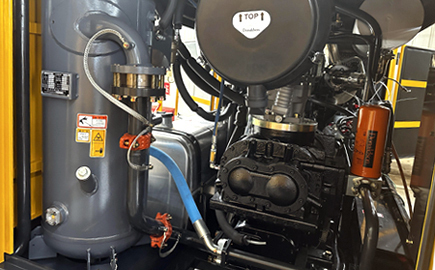

  • Two-stage compression ensures higher compression efficiency and provides more ample pressure. The compressor head utilizes a new high-efficiency profile, maximizing compression efficiency, reducing compressed air leakage, and guaranteeing sufficient pressure and discharge volume.

Smart Controller

  • A uniquely developed control system with multi-threaded engine control allows for real-time dynamic adjustment of air volume and pressure to suit appropriate conditions, reducing excessive energy consumption.
  • ● Ensuring Low Pressure Drop
  • ● Efficient separation, low oil content ( less than 3ppm ).
Specifications
compressor model WGD1620-40
Exhaust pressure [Bar] 15-20 15-30 15-40
Volumetric flow rate (M 3∕min] 42-40 43-38 45-36
Lubricating oil capacity [L] 165
Air end LGIR
Standard operating conditions many working conditions
Diesel engine manufacturer Yuchai
model YC6TD800-T301
Power (KW] 588
Maximum working speed idle (rpm) 1700/1300 1750/1300 1800/1300
Number of cylinders 6
Total displacement (L] 19.6
Fuel tank capacity [L] 1100
Whole machine unit Whole machine weight [t] 6.8
Exhaust port specification x quantity G2x1&G3/a ×1
Tyre specifications/quantity Skid mounted(optional)
Dimensions [mm] 4300×2200×2350
Noise (Db (A)] 85±3
core components Engine, Air end
After-sales Service Provided Online Support
Working pressure 35 bar
Motor power 588 kw
Cooling method Water
Cylinders 6
Noise level 83+-3
Certification ISOCE
Engine Yuchai Engine
