185 cfm Diesel Air Compressor

Model: WGD185
Capacity: 150-185 cfm
Working pressure: 7-10 bar
Motor power: 37kW
Contact us Inquiry Now
Description Specifications Related Products
Get Quote
Description

The WGD185 model air compressor is powered with one 37kW/50hp diesel engine which can produce compressed air of 150-185cfm @ 7-10 bar pressure.
185cfm model is our most popular diesel compressor in our company.With charactors of stable and economical , it is a good helper for construction and mining purpose.
Both portable and skid version are available.

WGD185 is a popular model from WINDBELL comapny , an efficiencyrange of oil injected, rotary screw compressors. Driven by a powerful4-cylinder Xichai diesel engine, it provides reliable compressed airfor different applications.

What are the benefits of WGD Diesel Air Compressor?

  • ● Water cooled engine, Coupling driven, Fuel filter with sight glass for easy identification.
  • A great feature of this engine is that all coolant is ran through a hydraulic system achieving a greater flow rate.This unit is controlled through an intutive intelligent LCDdigital display that is carefully protected behind a cabinetdoor.
  • ● Engine driven air compressorswill rev up when the air demand is required and whenidle back. Diesel engine will idle when pressure reached.
  • The WGD185 has been designed with twin air outlets makingit easy to either to regulate one outlet for air tools and whenhave direct pressure for blow downs or tyre inflation.
Details

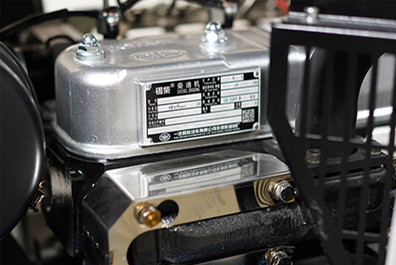

Reliable Diesel Engine

  • ● Powered by a 5Ohp Xichai engine, to ensure 185 cfm productivity at 7 bar pressure.
  • ● Xichai engine is economical, reliable, and durable.

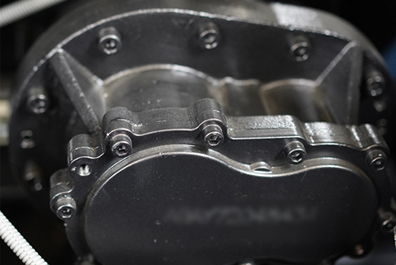

High Efficiency Airend

  • ● 5 year ,10000 hour warranty when continuouslyserviced at the recommended WNDBELL compressorfluid and filters.
  • ● Equiped with premium quality bearing ( such as SKF). 2 year standard warranty.

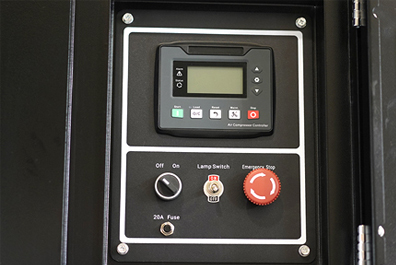

Smart Controller

  • ● Can realize functions of compressor start/stop.data measurement, maintenance, alarm protection, and "threeremotes".

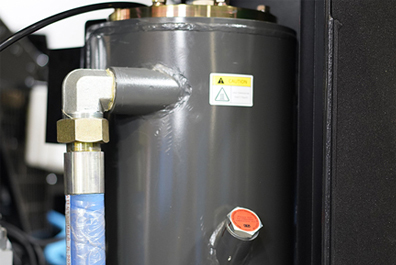

Oil Air Separator Tank

  • ● Low outlet temperature, ensuring long oil lifetime.
  • ● Large surface to ensure low operating temperature.

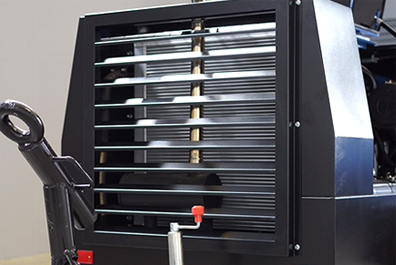

Cooling System

  • ● Enlarged air cooling system makes sure engine and compressor torun in good condition.

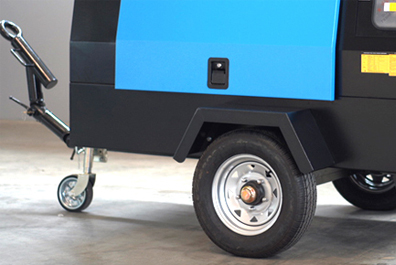

Height Adjustable Jockey Wheel

  • Mounted on wheels or skids for easy transportation to remote job sites. With parking brake(optional)
Filter System

Supporting real-time and cumulative power consumption measurement.
It can control any frequency converter that supports Modbus RTU protocol, so more flexible choices.
Highly integrated, reliable and cost-effective.

Oil Filter

Diesel&Engine Fuel Filter‌

Heavy duty Air Intake Filter

Specifications
Model
No.		 Free Air Delivery (cfm) Make Engine
Power		 Full Load
Speed		 Off load
Speed		 Fuel Tank
Capacity		 Weight Outlets Dimension (mm)
100  116  145  174
psi psi psi psi hp rpm rpm L kg L W H
WGD185 185  150  XICHAI 50 2650 1450 80 900 2×3/4" 3050 1650 1500
WGD185
SKID		 185  150  XICHAI 50 2650 1450 80 825 2×3/4" 2010 1240 1100
