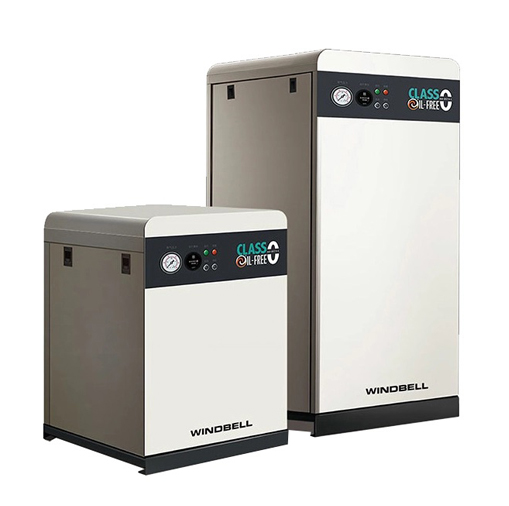

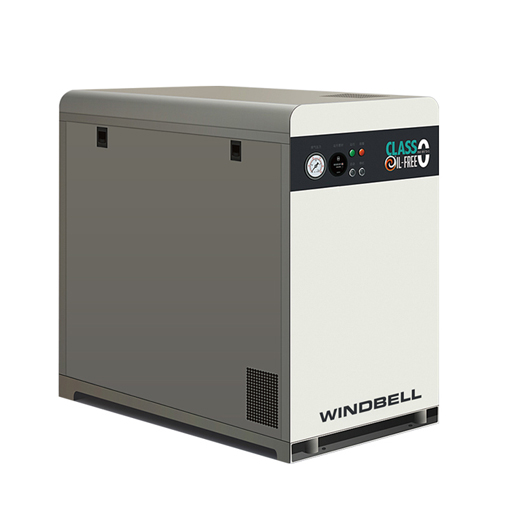

WOS 2.2-5.5kW Oilfree Scroll Air Compressor

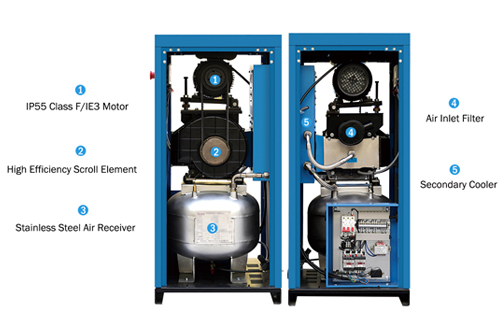

The WOS 2.2-5.5 is a complete package uniting the scrollelement,drive motor ,cooler in a silent enclosure. lt is alsoavailable as a full feature unit with refrgerated air dryer.

Three air receiver mounting options are available: with anextended canopy that includes a 40L stainless steel airreceiver or mounted on an outer horizontal 110L or 200L airreceiver.

It is mainly used in food, medicine, electronics, printing, chemical, precision spraying and golf courses.

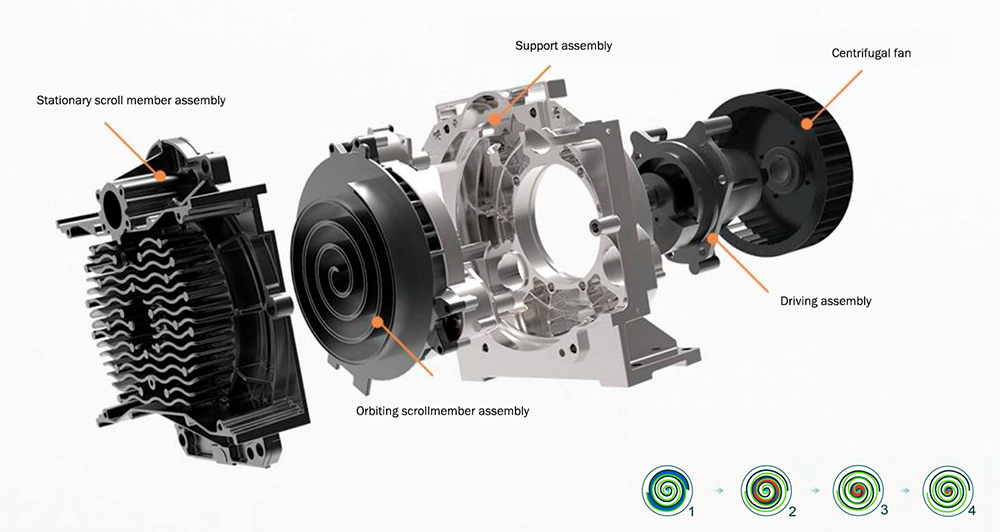

The orbiting scroll rotates in the order of 1-2-3-4 as shown in the diagram, the air issucked into the space between the orbiting scroll and the stationary scroll, the volume ofcrescent compression chamber gradually decreases, and then the air is discharged fromthe exhaust port at the center of the stationary scroll after being compressed.

Product Feature

• ● CE certification, grade 0 oil-free air exhaust to lS0 8573-1;
• ● High efficiency, low specific power and high energy efficiency;
• ● Maintenance-free, the maintenance interval is not less than 10,000 hours;
• ● Silent, the noise of the whole system equipped with 3.7kW compressoris lower than 59dB;
• ● Under standard working conditions, the vibration of main unit is lessthan 7.lmm/s
