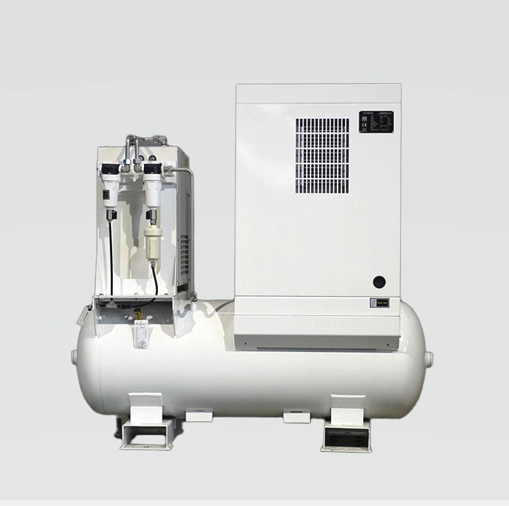

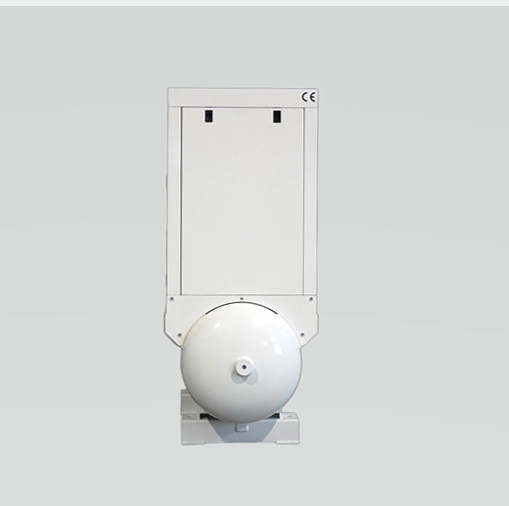

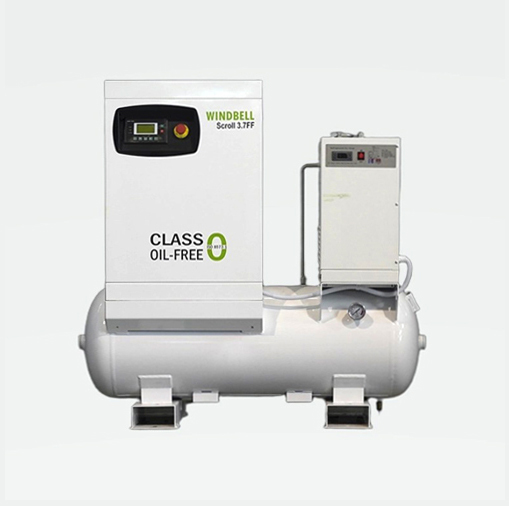

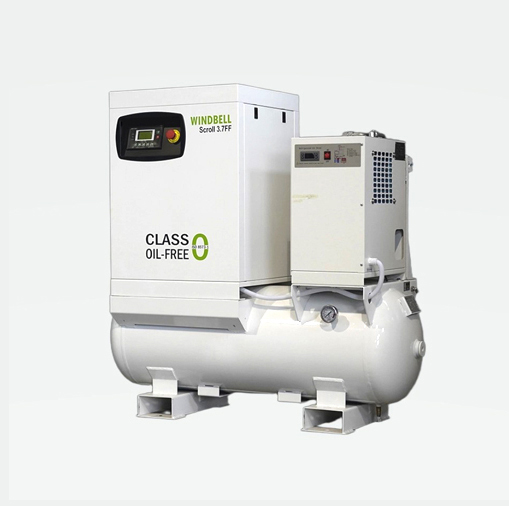

3 In 1 Oil-free Air Compressor

Model: WOS3.7
Capacity:200 L/min
Working pressure: 7-10 bar
Motor power: 3.7kW
Contact us Inquiry Now
Description Specifications Related Products
Get Quote
Description

The 3 and 1 oil-free scroll air compressors are gas compression devices that form a crescent-shaped compression chamber through the relative motion of the stationary scroll and the moving scroll. They are mainly used in the food, pharmaceutical, electronics, printing, chemical, precision spraying and golf course industries.

APPLICATION OF PRODUCTS

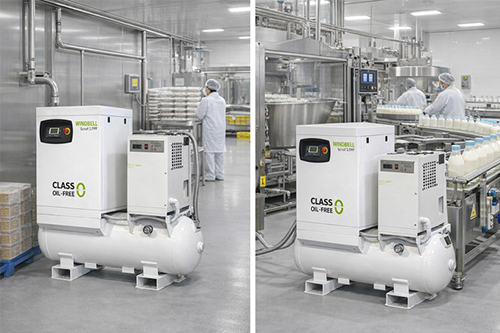

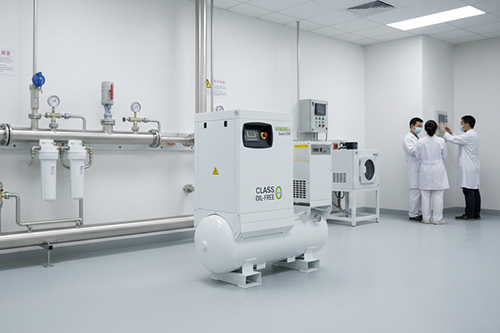

Applications include: Electronics: chip packaging, PCB cleaning; Food and beverage: filling and packaging; Medical: power source for dental equipment and surgical instruments, etc.

Working Principle

The orbiting scroll rotates in the order of 1-2-3-4 as shown in the diagram, the air issucked into the space between the orbiting scroll and the stationary scroll, the volume ofcrescent compression chamber gradually decreases, and then the air is discharged fromthe exhaust port at the center of the stationary scroll after being compressed.

Product Feature

  • ● CE certification, grade 0 oil-free air exhaust to lS0 8573-1;
  • ● High efficiency, low specific power and high energy efficiency;
  • ● Maintenance-free, the maintenance interval is not less than 10,000 hours;
  • ● Silent, the noise of the whole system equipped with 3.7kW compressoris lower than 59dB;
  • ● Under standard working conditions, the vibration of main unit is lessthan 7.lmm/s
Details
Specifications
Model Working pressure Capacity FAD Motor Power Tank Capacity Noise Level Weight Dimension (mm)
No. bar cfm hp L Db Kg L W H
WOS2.2 8 8.5 3 40 53+/-3 115 540 500 1095
10 7.05
WOS3.7 8 14.5 5 40 55+/-3 125 540 500 1095
10 12
WOS7.5 8 29 10 / 60+/-3 350 1200 700 1100
10 24
WOS11 8 42 15 / 61+/-3 500 1250 740 1280
10 36
WOS15 8 58 20 / 62+/-3 550 1250 740 1650
10 48
WOS18 8 72 25 / 62+/-3 650 1250 740 2000
10 60
WOS22 8 86 30 / 63+/-3 900 1600 1250 1650
10 72
WOS30 8 115 40 / 64+/-3 1050 1600 1250 2000
10 96
WOS37 8 145 50 / 65+/-3 1250 1600 1250 2000
10 120
