Compressed Air Dryer

Model: WBD4.0
Capacity: 1.0-26.0 m3/min
Working pressure: 5-16 bar
Motor power: 843W
Contact us Inquiry Now
Description Specifications Related Products
Get Quote
Description

Compressed air contains oil,solidparticles andwater vapors.they forman abrasive,often acidicoily sludge.Without air treatment,this murky mixwill enter the compressed air system,corrodingpipe work,damagingpneumatic tools andpotentiallycompromising final products.

The WBD range refrigerant dryer is a reliable , cost effective and easy to use solution .The dryer can be used at different pressures adn consumes hardly any processed compressed air.

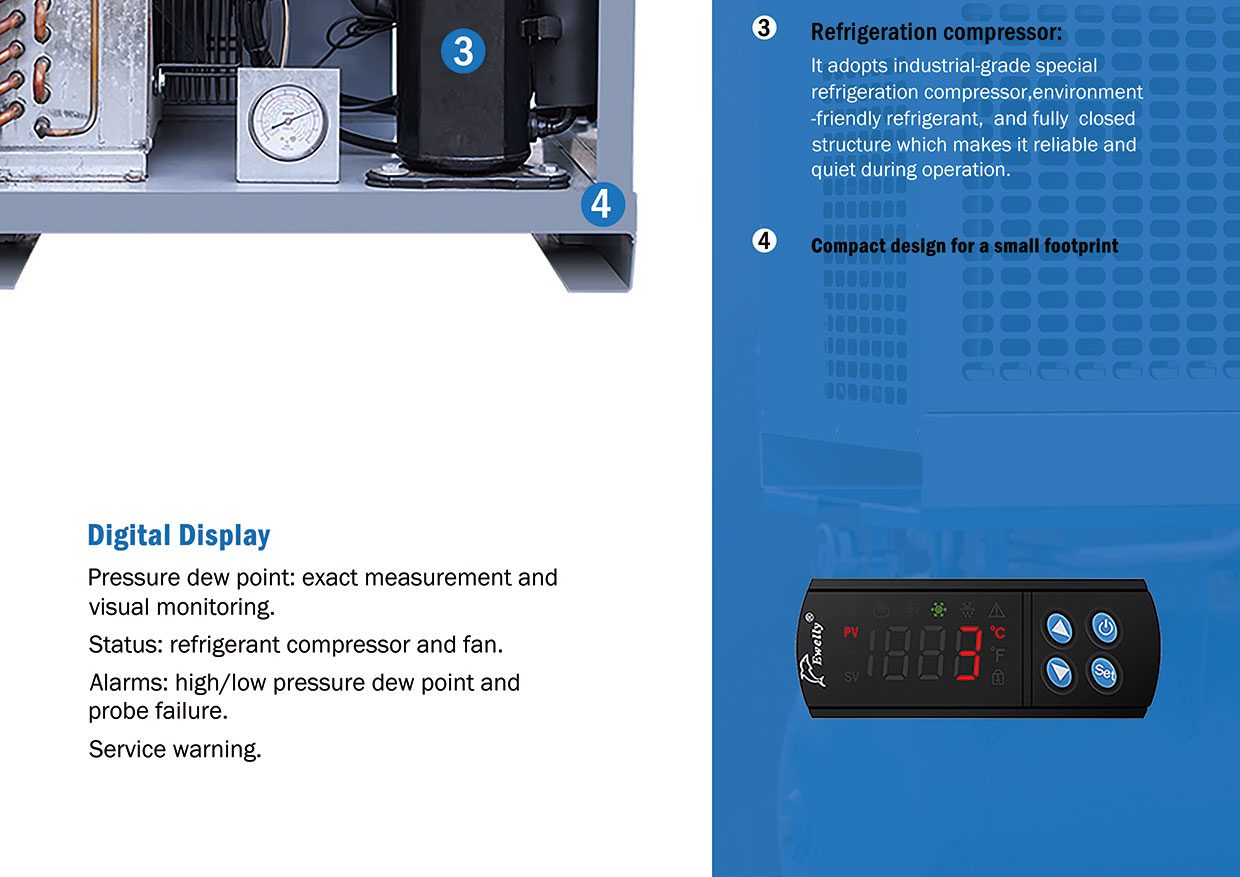

NEW: DIGITAL DISPLAY

  • ● Pressure dew point: exact measurement and visual monitoring
  • ● Status: refrigerant compressor and fan.
  • ● Alarms: high/low pressure dew point andprobe failure.
  • ● Service warning.

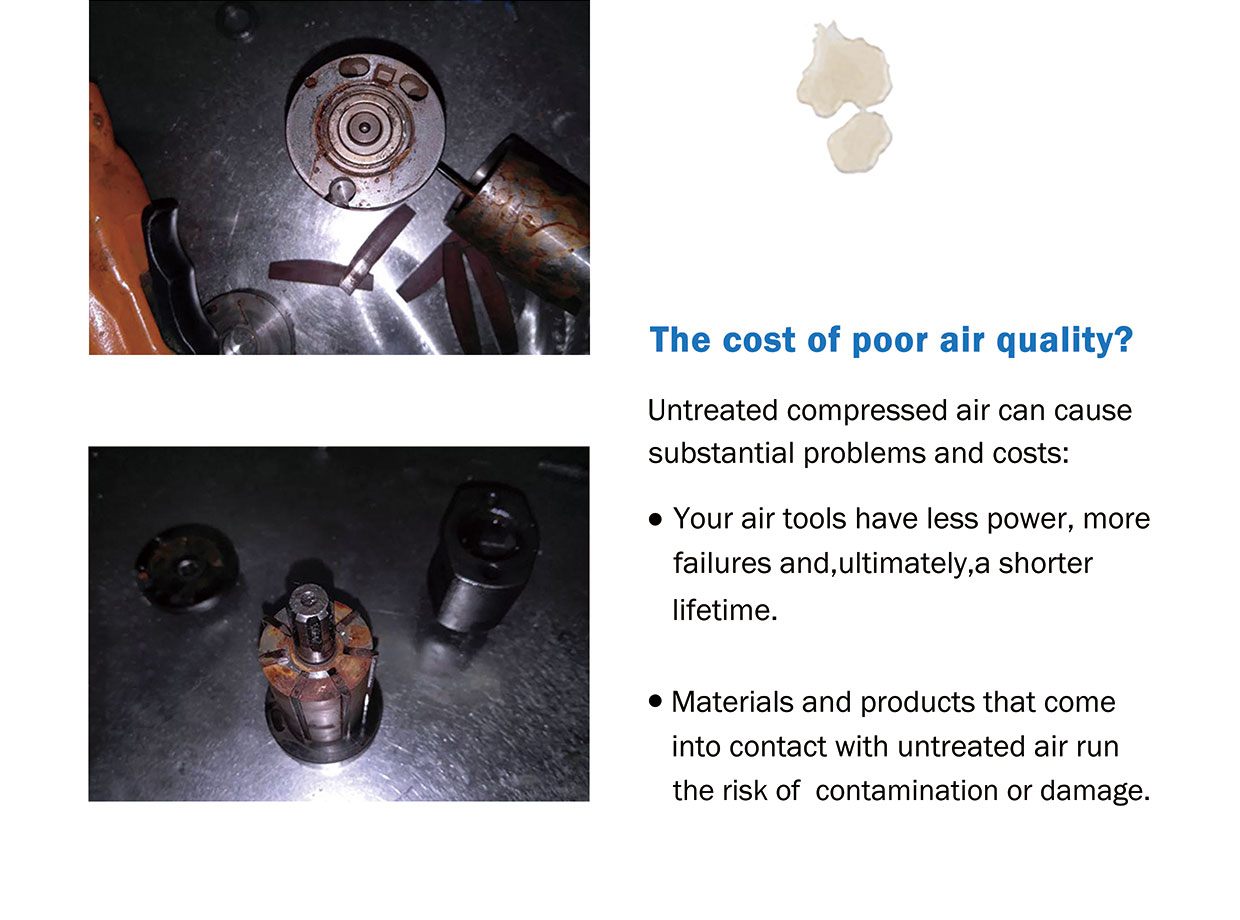

The cost of poor air quality?

Untreated compressed air can causesubstantial problems and costs:

  • ● Your air tools have less power, morefailures and,ultimately,a shorterlifetime.
  • ● Materials and products that comeinto contact with untreated air runthe risk of contamination or damage.

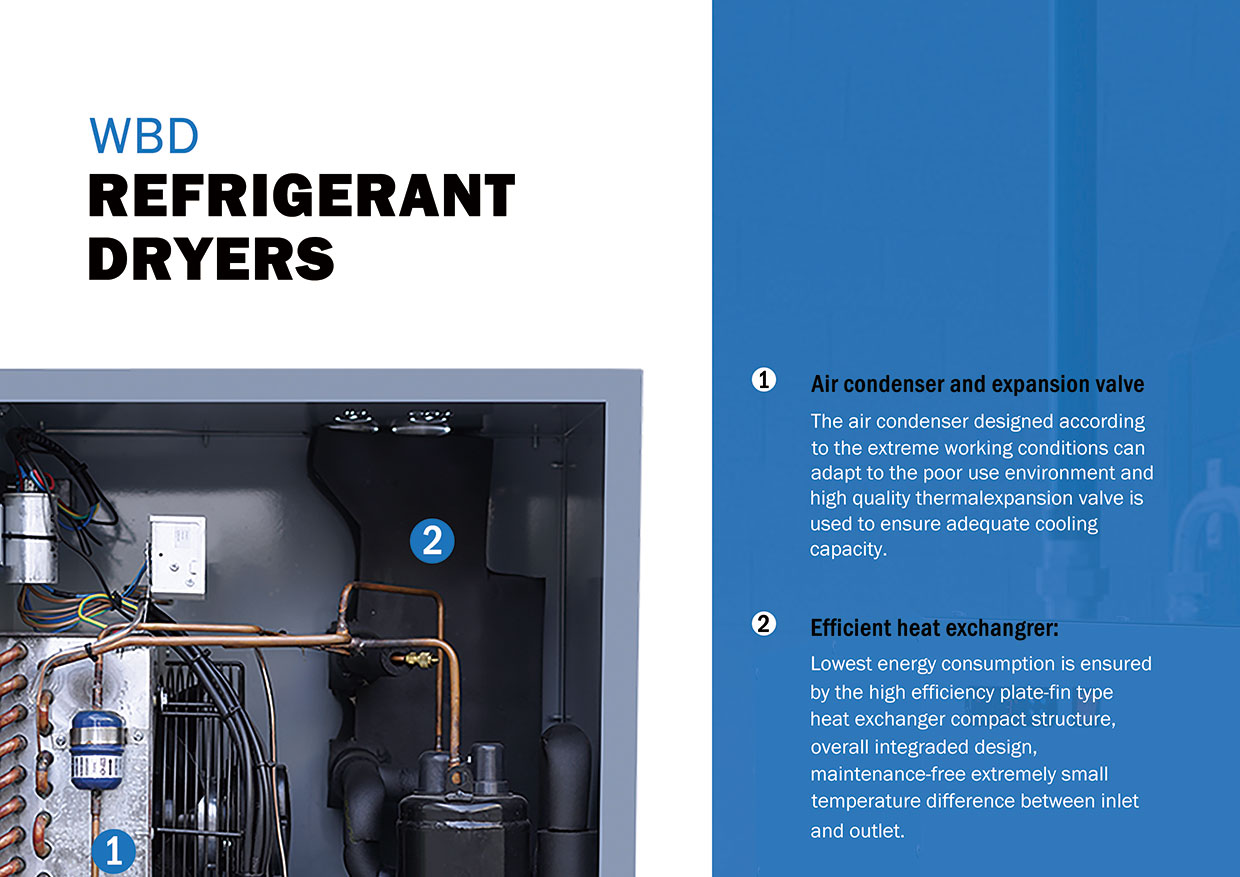

Details

ELECTRIC DRAINVALVE

  • ADJUST THE DRAINAGEFREQUENCY

REFRIGERATIONCOMPRESSOR

  • ENVIRONMENTAL PROTECTION REFRIGERANT

AIR COOLEREXPANSION VALVE

  • STABLE REFRIGERATING CAPACITY
Specifications
Model
NO.		 Working pressure
Bar 		 Capacity FAD
m3/min		 Pressure
Drop		  Dew Point
℃		 Power
W		 Power Voltage
V/Phase/Hz		 Cryogen Inlet/Oulet
Diameter 		 Weight
Kg		 Dimension (mm)
L×W×H
WBD10 7-10 1.0  0.3  10  350 220/1/50 R134a G3/4 30 352 430 445
WBD13 7-10 1.3  0.1  10  400 220/1/50 R134a G3/4 30 550 370 705
WBD21 7-10 2.1  0.2  10  453 220/1/50 R134a G3/4 34 550 370 705
WBD40 7-10 4.0  0.4  10  843 220/1/50 R410A G1 55 520 500 809
WBD66 7-10 6.6  0.25  10  1170 220/1/50 R410A G1.5 60 520 500 809
WBD85 7-10 8.5  0.2  10  1200 220/1/50 R410A G1.5 68 550 600 958
WBD105 7-10 10.5  0.3  10  1312 220/1/50 R410A G2 75 550 600 958
WBD140 7-10 14.0  0.2  10  2143 220/1/50 R410A G2 110 900 750 1009
WBD175 7-10 17.5  0.2  10  2170 220/1/50 R410A G2 126 900 750 1009
WBD220 7-10 22.0  0.3  10  4100 220/1/50 R410A G2.5 140 1050 660 1130
WBD260 7-10 26.0  0.3  10  4300 220/1/50 R410A G2.5 162 1050 660 1130
