250 cfm Diesel Air Compressor

Model: WGD250
Capacity: 200-250 cfm
Working pressure: 8-10 bar
Motor power: 55kW
Description

The WGD250 model air compressor is powered with one 55kW/75hp diesel engine which can produce compressed air of 200-250cfm @ 8-10 bar pressure.

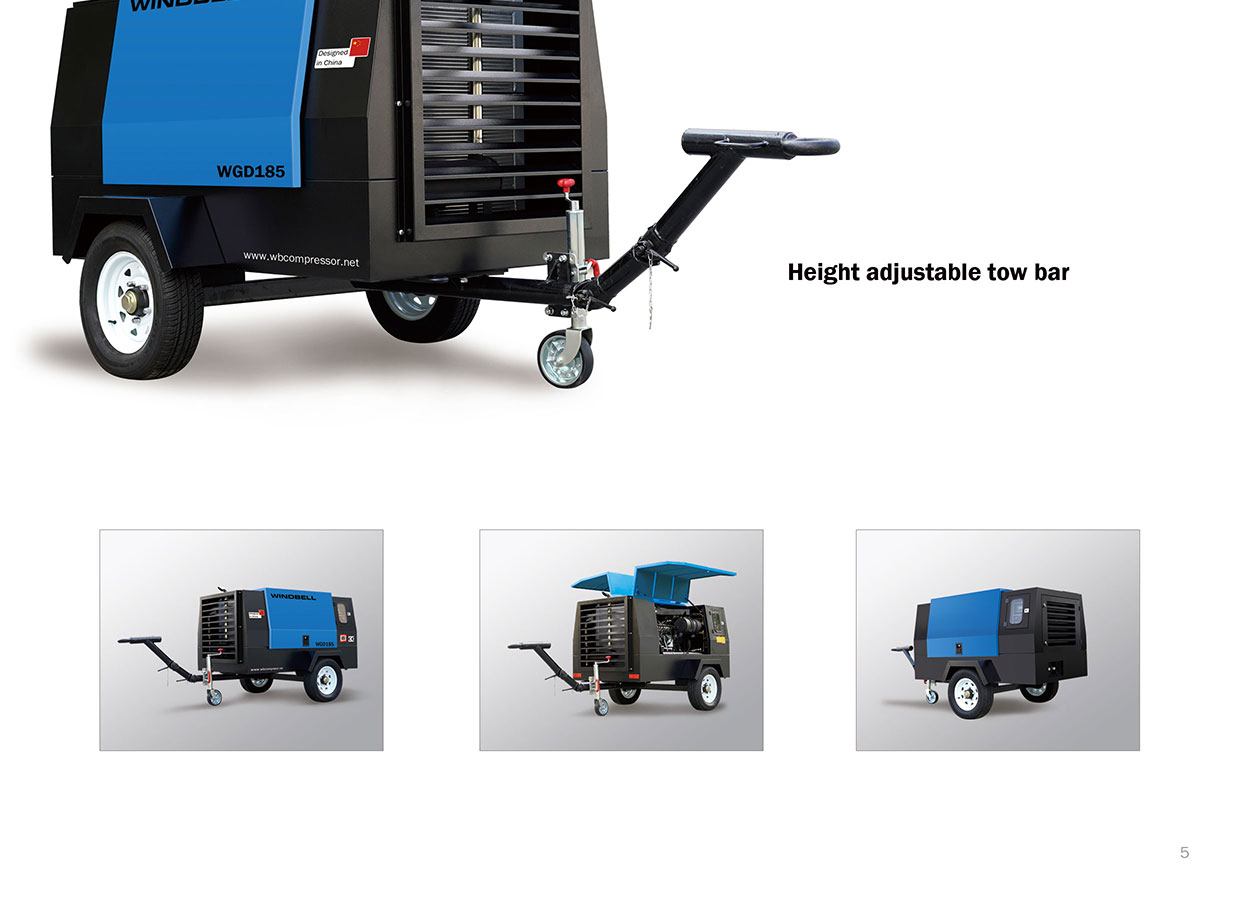

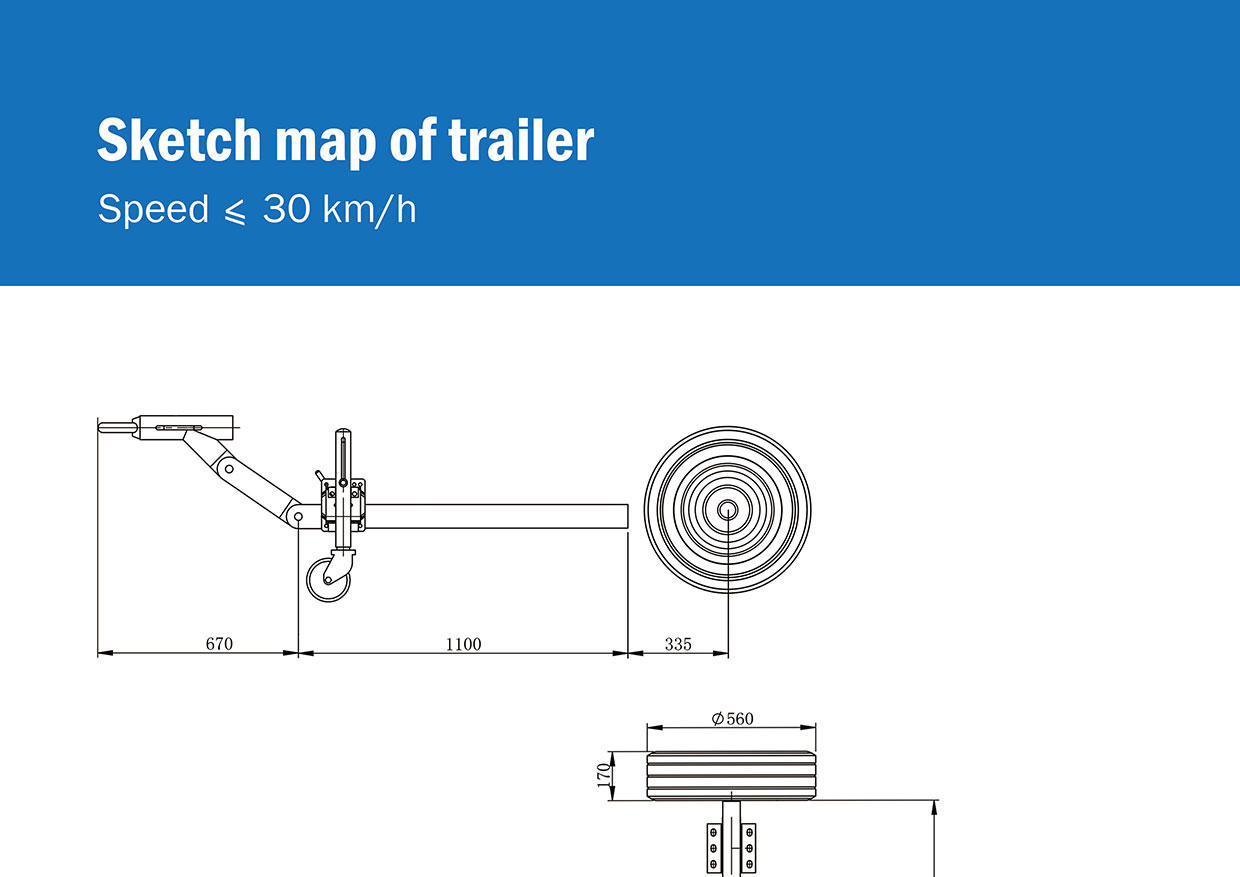

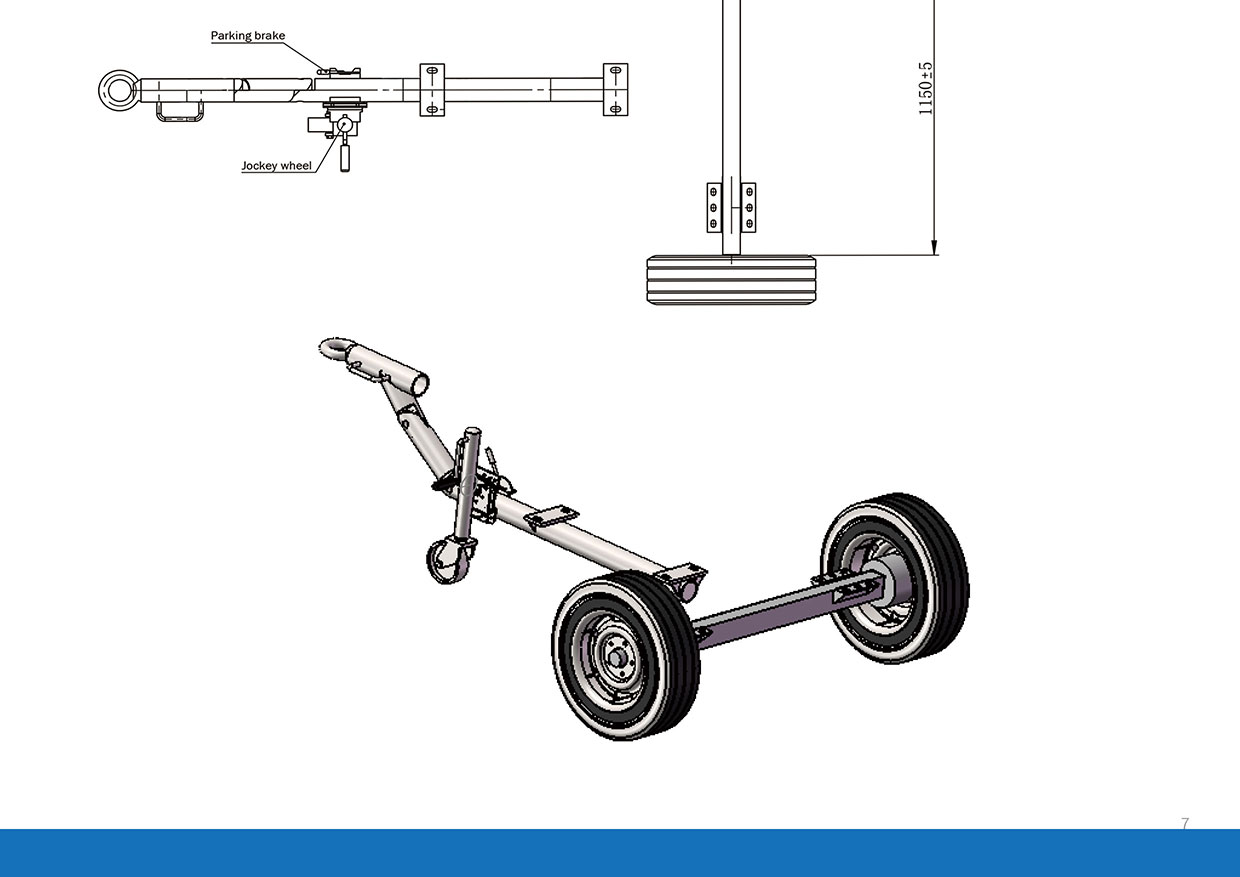

Both portable and skid version are available.

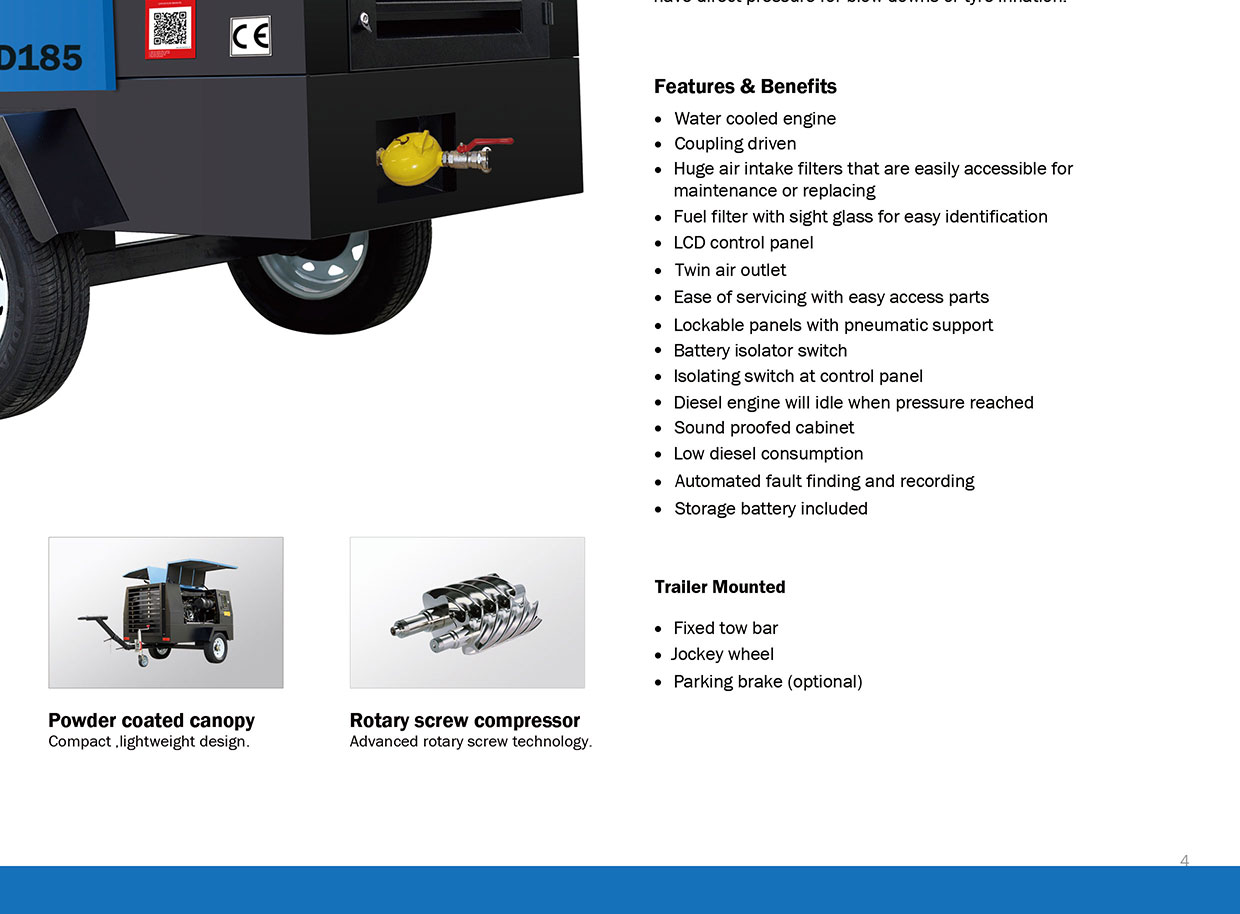

What are the benefits of WGD Diesel Air Compressor?

  • ● Water cooled engine, Coupling driven, Fuel filter with sight glass for easy identification.

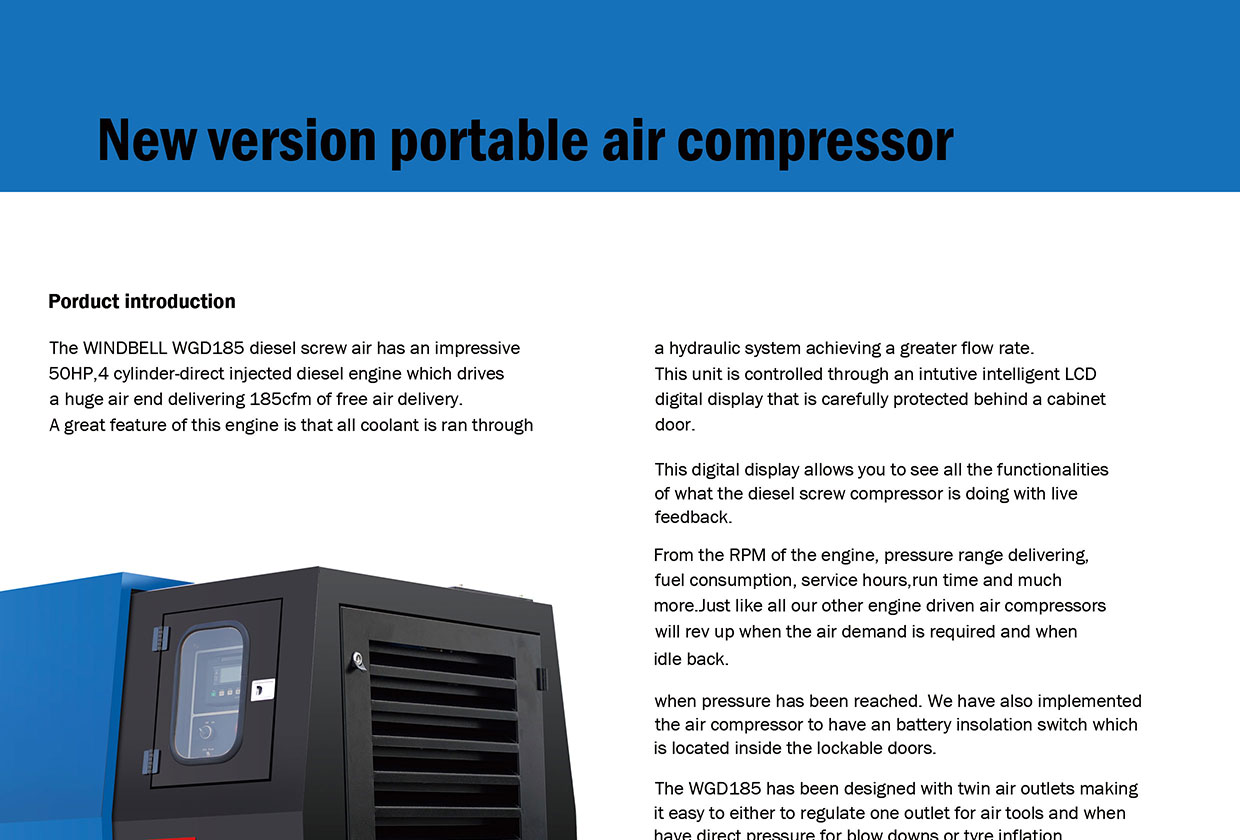

  • ● A great feature of this engine is that all coolant is ran through a hydraulic system achieving a greater flow rate.This unit is controlled through an intutive intelligent LCDdigital display that is carefully protected behind a cabinetdoor.
  • ● Engine driven air compressorswill rev up when the air demand is required and whenidle back. Diesel engine will idle when pressure reached.
  • ● The WGD250 has been designed with twin air outlets makingit easy to either to regulate one outlet for air tools and whenhave direct pressure for blow downs or tyre inflation.
Details

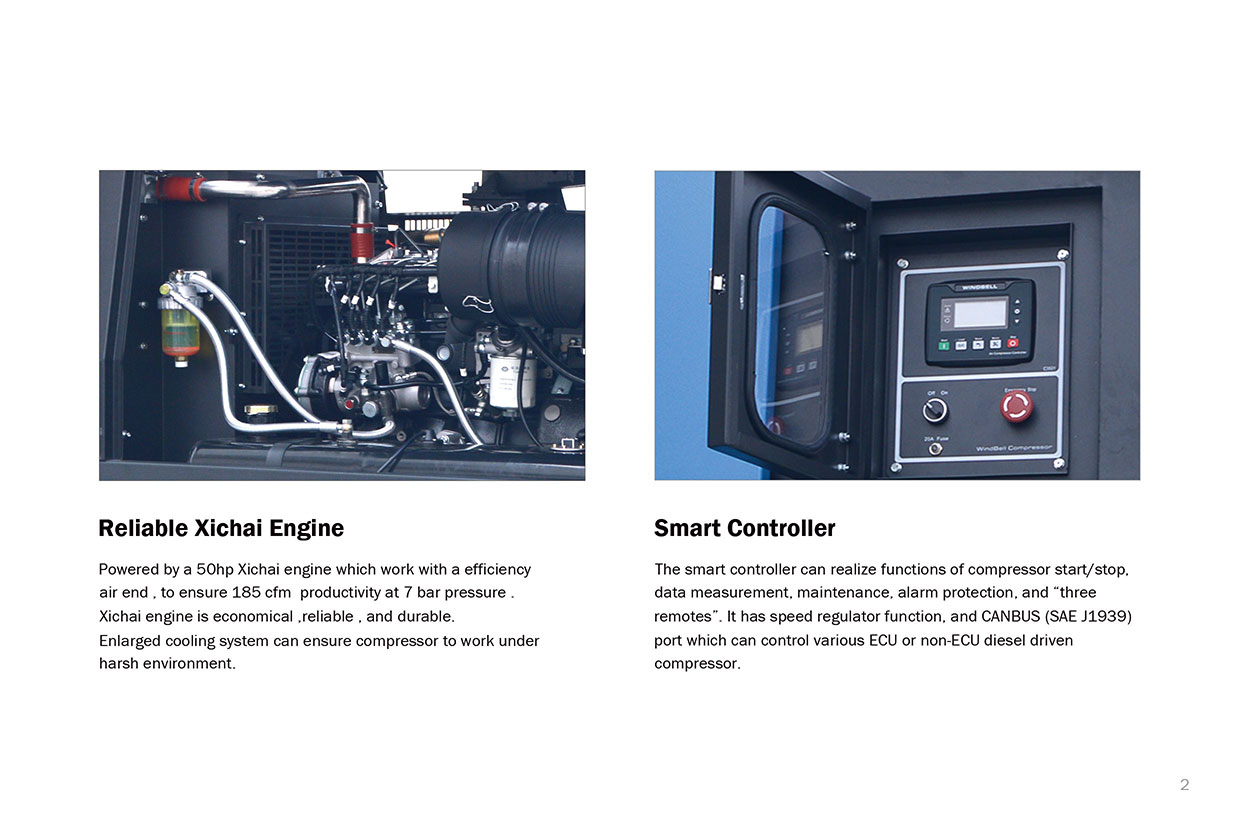

Reliable Xichai Engine

  • ● Xichai engine is economical ,reliable , and durable.
  • ● Enlarged cooling system can ensure compressor to work underharsh environment.

High Efficiency Airend

  • ● 5 year ,10000 hour warranty when continuouslyserviced at the recommended WNDBELL compressorfluid and filters.
  • ● Equiped with premium quality bearing ( such as SKF). 2 year standard warranty.

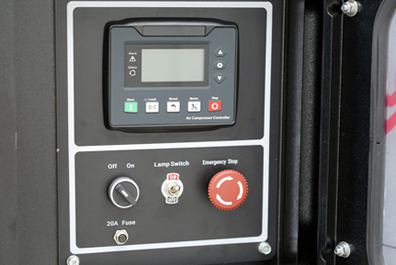

Smart Controller

  • ● Can realize functions of compressor start/stop.data measurement, maintenance, alarm protection, and "threeremotes".

Oil Air Separator Tank

  • ● Low outlet temperature, ensuring long oil lifetime.
  • ● Large surface to ensure low operating temperature.

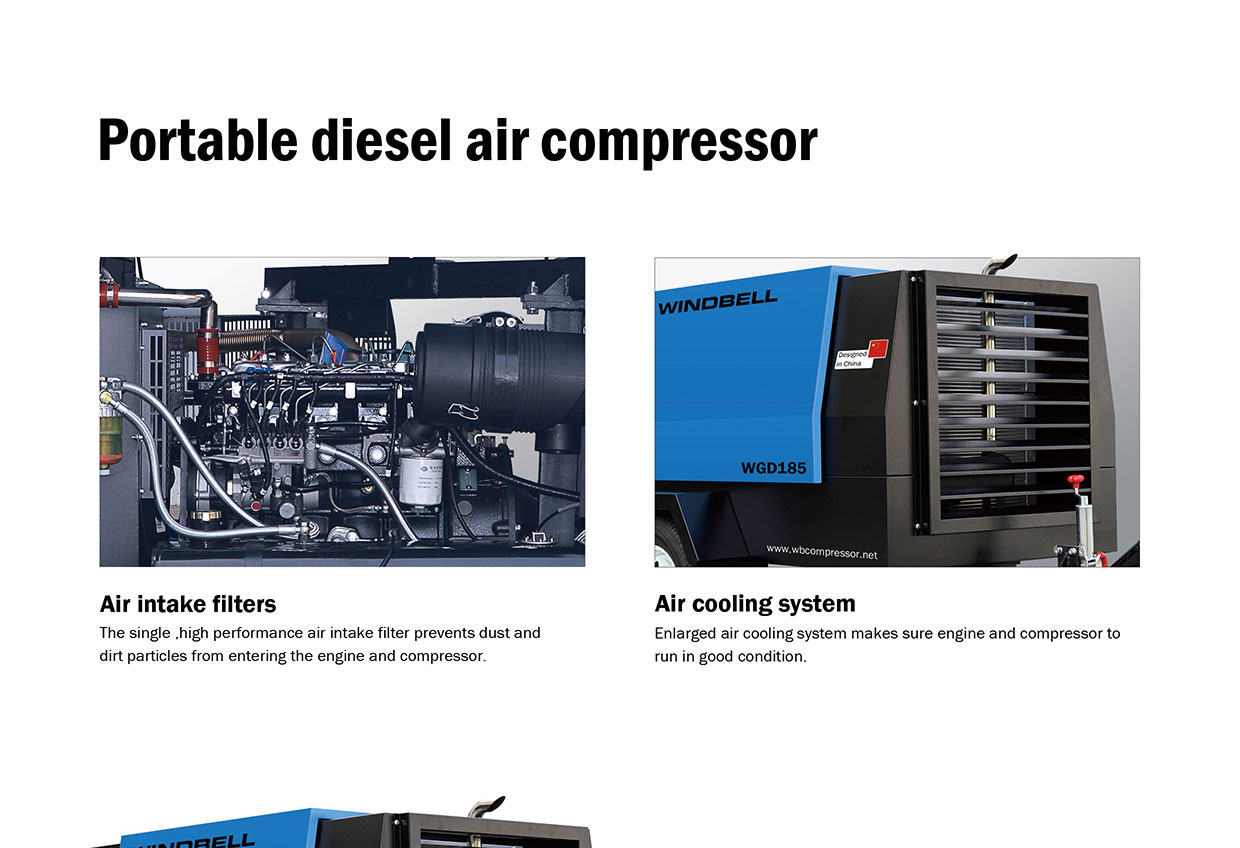

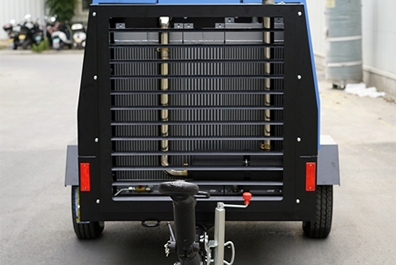

Cooling System

  • ● Enlarged air cooling system makes sure engine and compressor torun in good condition.

Oil-Water Separator

  • ● Ensuring Low Pressure Drop
  • ● Efficient separation, low oil content ( less than 3ppm ).
Filter System

Supporting real-time and cumulative power consumption measurement.
It can control any frequency converter that supports Modbus RTU protocol, so more flexible choices.
Highly integrated, reliable and cost-effective.

Oil Filter

Diesel&Engine Fuel Filter‌

Heavy duty Air Intake Filter

Specifications
Model
No.
Free Air Delivery (cfm) Make Engine
Power
Full Load
Speed
Off load
Speed
Fuel Tank
Capacity
Weight Outlets Dimension (mm)
100  116  145  174
psi psi psi psi hp rpm rpm L kg L W H
WGD250 250  210  185  XICHAI 75 2400 1350 110 1600 1×3/4"
1-1/4"
3170 1760 1660
WGD250
SKID
250  210  185  XICHAI 75 2400 1350 110 1500 1×3/4"
1-1/4"
2150 1350 1260
