2.2-5.5kW Tank Mounted Air Compressor

Model: WZS2.2
Capacity: 0.28-0.32 m3/min
Working pressure: 8-10 bar
Motor power: 2.2kW
Contact us Inquiry Now
Description Specifications Related Products
Get Quote
Description

This compressor is mounted on one 110L tank , power available from 2.2-5.5kw , belt driven .
Both fixed speed and variable speed type are available.
They are perfect solution for small business, workshops and operattions that don’t need compressed air very often.

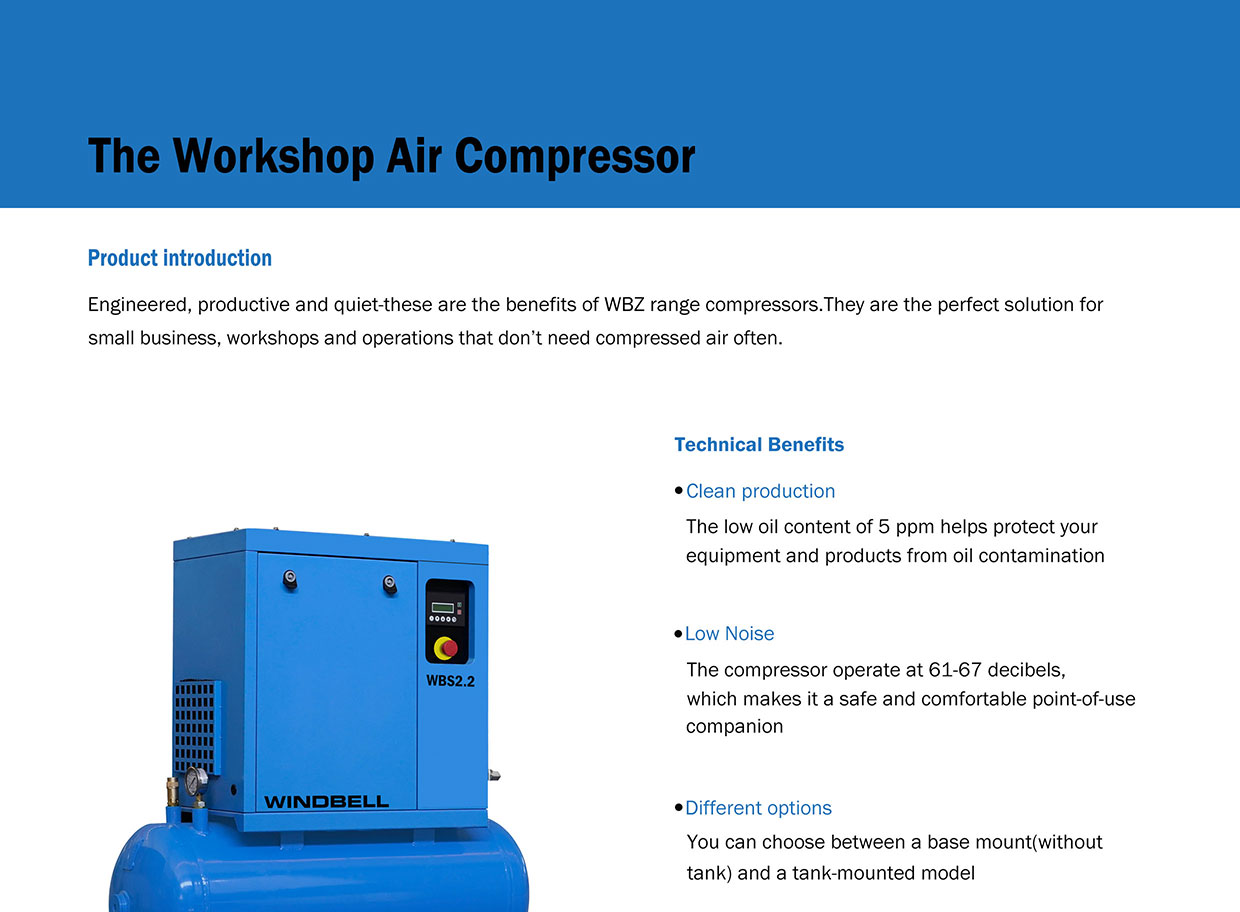

What are the benefits of the workshop air compressor?

Engineered, productive and auiet-these are the benefits of WBZ range compressors.They are the perfect solution forsmall business, workshops and operations that don't need compressed air often.

  • ● Clean production: The low oil content of 5 ppm helps protect yourequipment and products from oil contamination.
  • ● Low Noise: The compressor operate at 61-67 decibels,which makes it a safe and comfortable point-of-usecompanion.
  • ● Different options: You can choose between a base mount(withouttank) and a tank-mounted model.

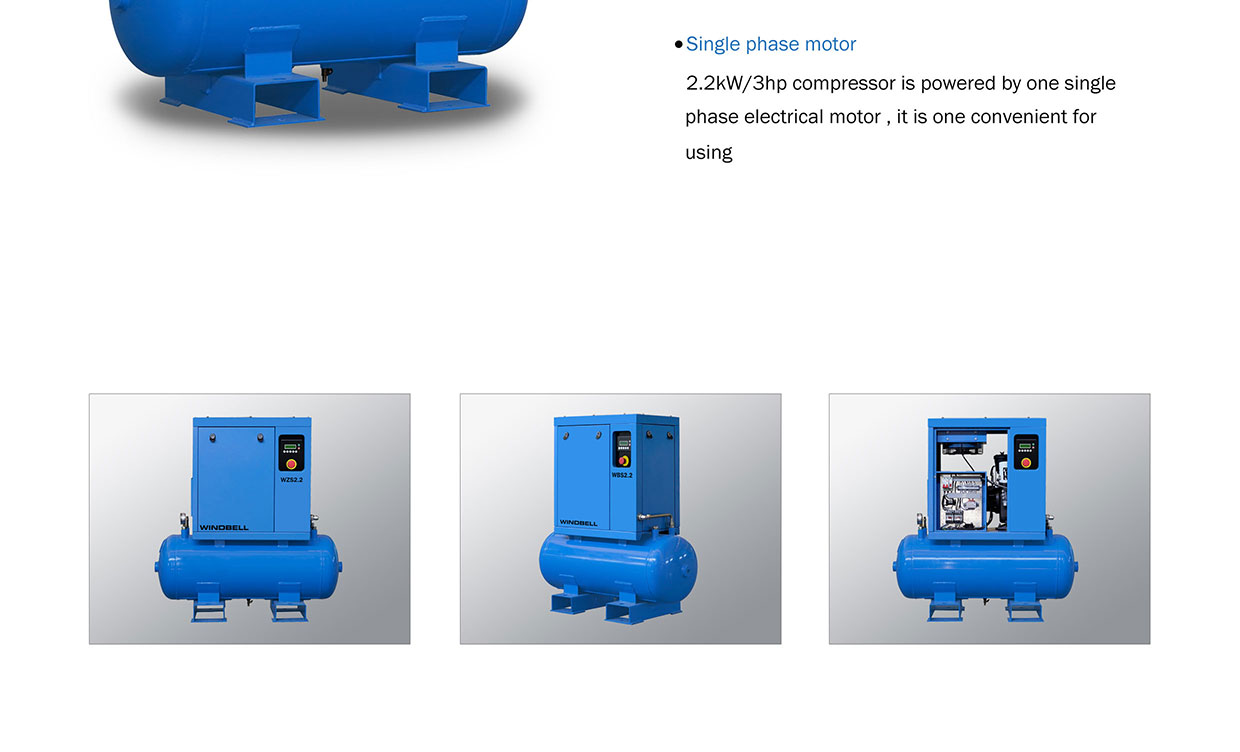

  • ● Single phase motor: 2.2kW/3hp compressor is powered by one singlephase electrical motor , it is one convenient forusing.
Details

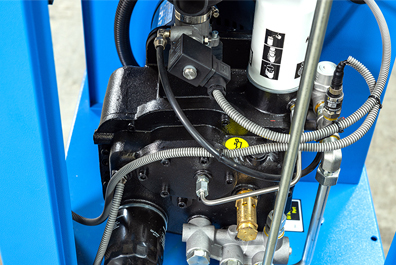

High Efficiency Airend

  • ● High-efficiency and energy-saving screw compression host
  • ● Guarantees longer lifetime of compressor components.

Modular Vector Inverters

  • ● Featured modular vector inverters.Energy saving is achieved by controlling the speed of the inverter.

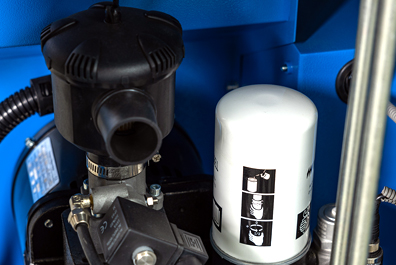

Oil air separator

  • ● Low pressure drop.
  • ● Efficient separation, low oil content.

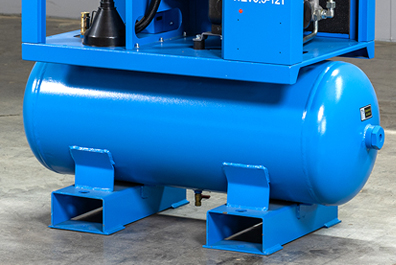

Air Tank

  • ● Design pressure 14.7 bar.
  • ● Body thickness: 4mm Internal volume: 200L.
START AND OPERATION

The figure shows a comparison of several types of start up. We can see that the VSD air compressor is slowly accelerating started, more stable than the soft-start compressor, completely avoiding the current peak. Variable speed screw air compressor is ideal for use in areas lacking of electricity.

COST

The WINDBELL VSD screw air compressor can change the motor RPM precisely according to the air consumption under stable discharge pressure.The compressor only delivers the required air,and only consumers the energy of necessary compressed air. That's why the VSD type screw air compressor can save energy during the whole set machine operation.The cost of saving energy is much higher than the cost of machine itself.

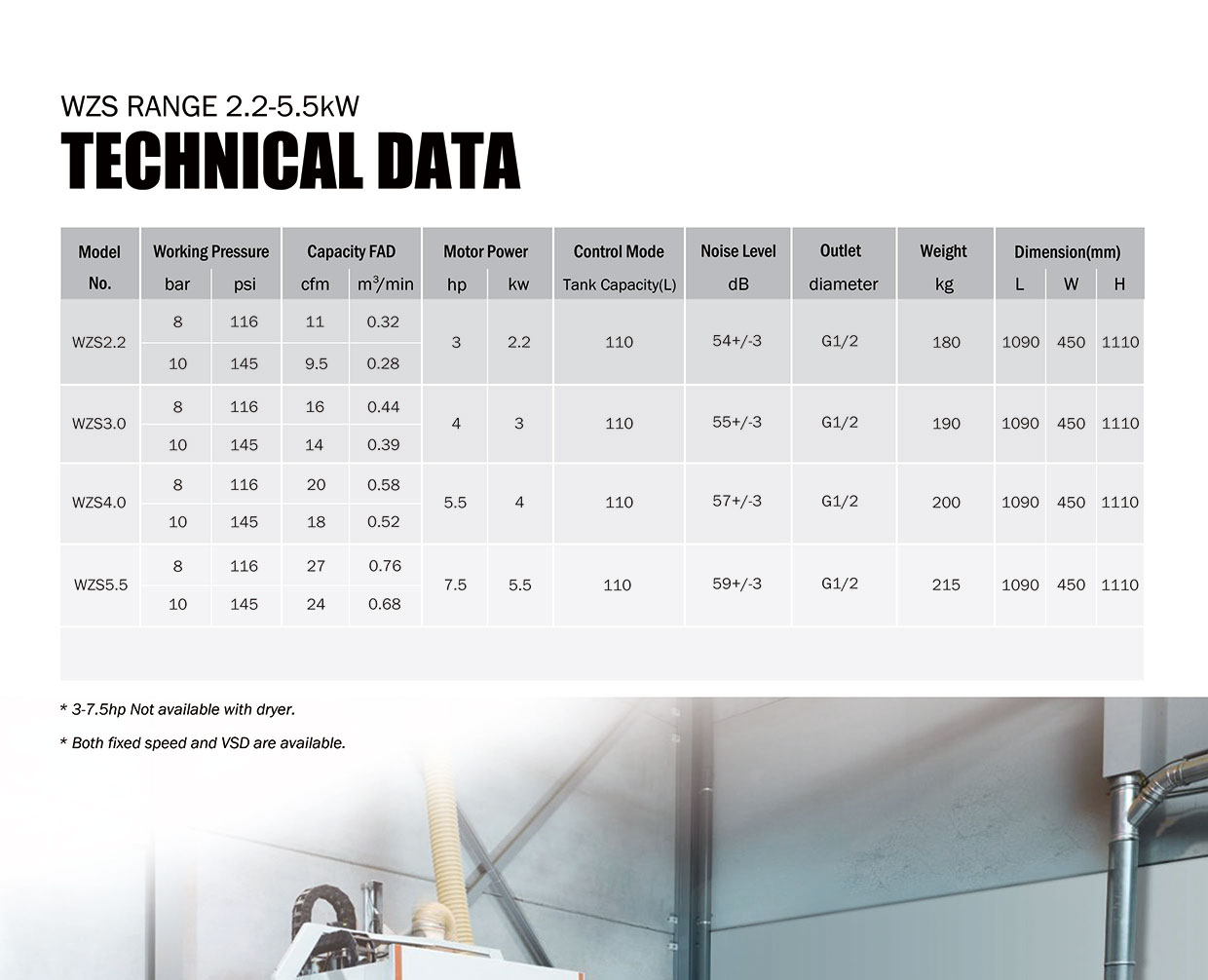

Specifications
Model Working pressure  Capacity FAD Motor Power Tank Capacity Noise Level Oulet  Weight  Dimension (mm)
No. bar psi cfm m3/min hp kw L Db Diameter Kg L W H
WZS2.2 8 116 11 0.32  3 2.2  110 54+/-3 G1/2 180 1090 450 1110
10 145 9.5 0.28
WZS3.0 8 116 16 0.44  4 3  110 55+/-3 G1/2 190 1090 450 1110
10 145 14 0.39
WZS4.0 8 116 20 0.58  5.5 4  110 57+/-3 G1/2 200 1090 450 1110
10 145 18 0.52
WZS5.5 8 116 27 0.76  7.5 5.5  110 59+/-3 G1/2 215 1090 450 1110
10 145 24 0.68
